Makino CNC Machines in the Pacific Northwest

About Makino

Makino Milling Machine Co., Ltd. was founded in 1937 by Tsunezo Makino and is headquartered in Tokyo, Japan. Makino’s Tokyo research and development team introduced the first commercially viable horizontal machining center, and the company developed Japan’s first NC milling machine (1958) and first machining center (1966). Today Makino builds horizontal and vertical machining centers, 5-axis machines, graphite machining centers, wire and sinker EDMs, and automation used by manufacturers in more than 40 countries.

Machine Types

Horizontal 4-axis machining centers
5-axis machining centers
Vertical 3-axis machining centers

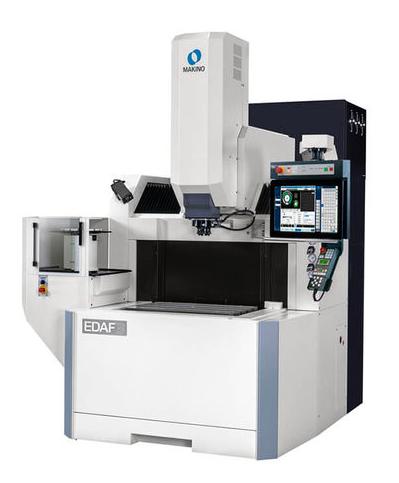

Wire and sinker EDM

Current lineup and published specifications from Makino, in inches as Makino publishes them; optional values are in parentheses. Configurations vary, so confirm the specs for your application with Ellis.

Horizontal Machining Centers (4-Axis)

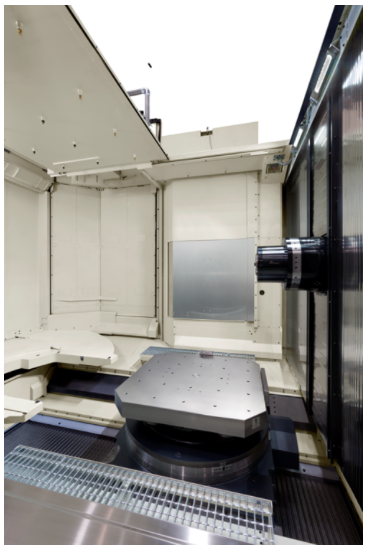

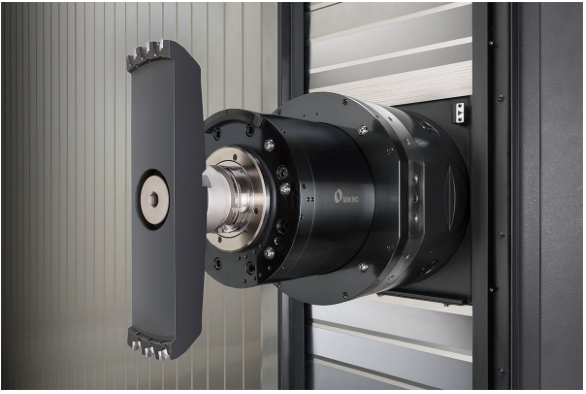

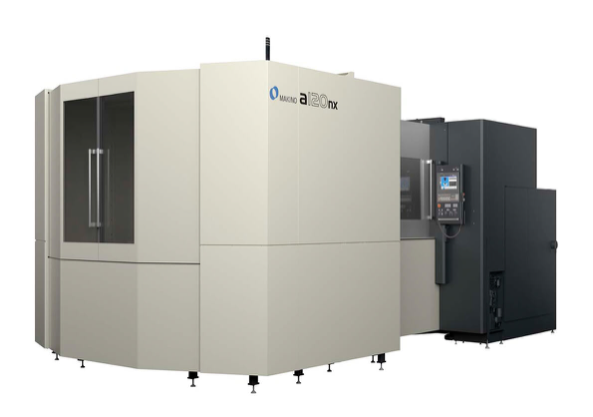

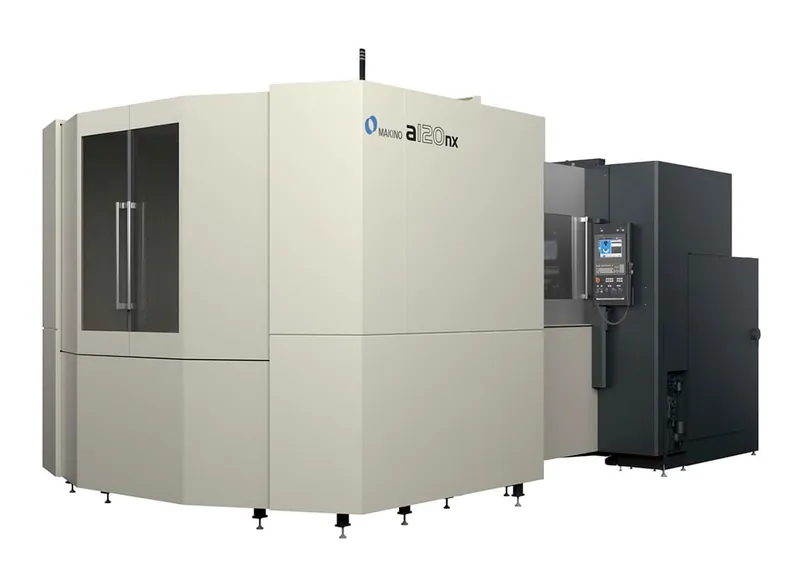

a120nx

X/Y/Z travel: 74.8" / 63.0" / 63.0"
Pallet: 39.4" x 39.4"
Spindle (rpm): 8,000 (Optional 20,000)
Tool capacity: 204

Get specs & pricing View full specs ↗

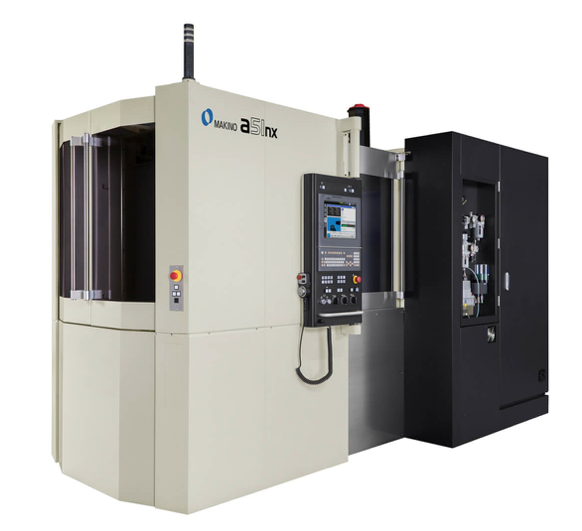

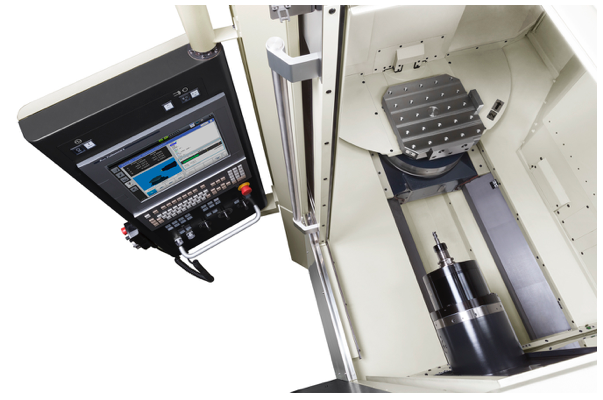

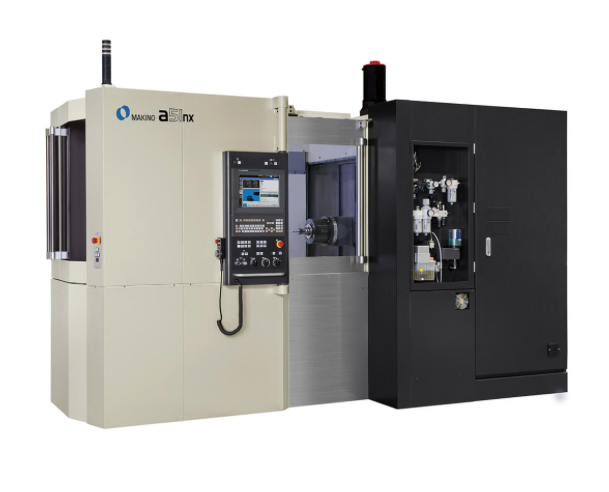

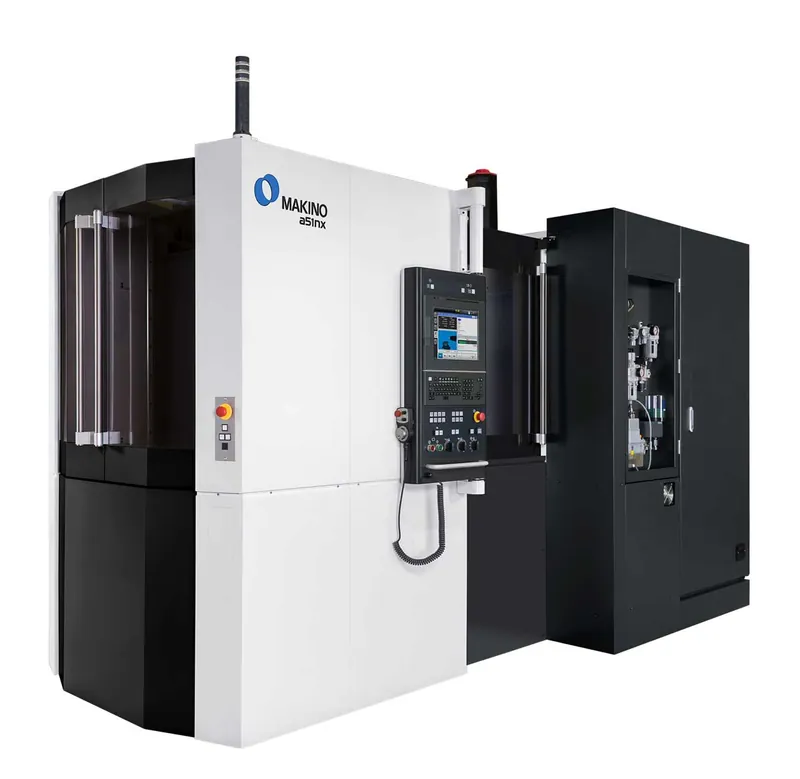

a51nx

X/Y/Z travel: 22.0" / 25.2" / 25.2"
Pallet: 15.7" x 15.7"
Spindle (rpm): 14,000 (20K opt.)
Tool capacity: 60 Tools (40, 134, 219, 311 opt.)

Get specs & pricing View full specs ↗

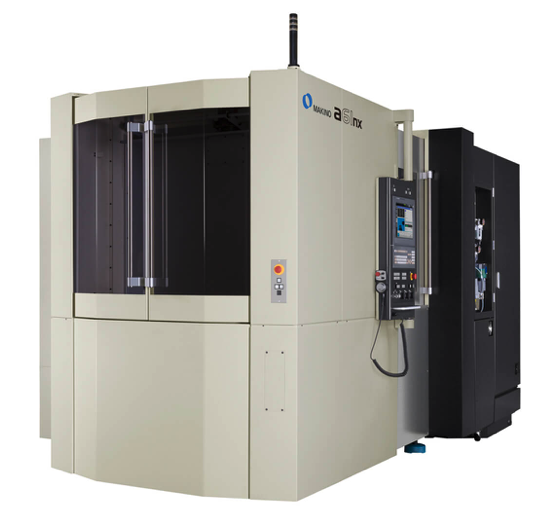

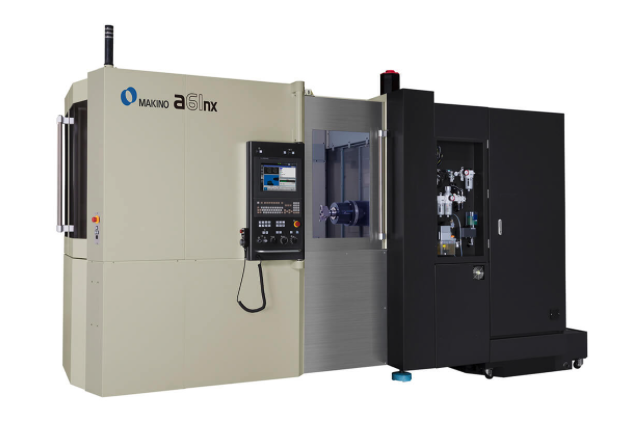

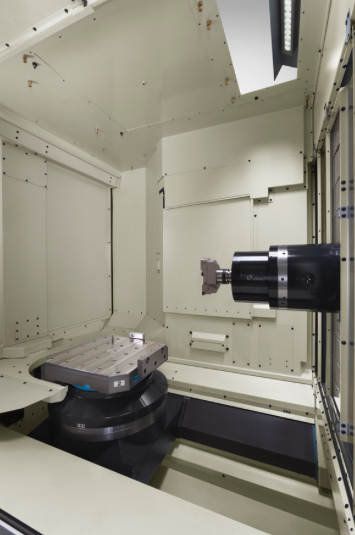

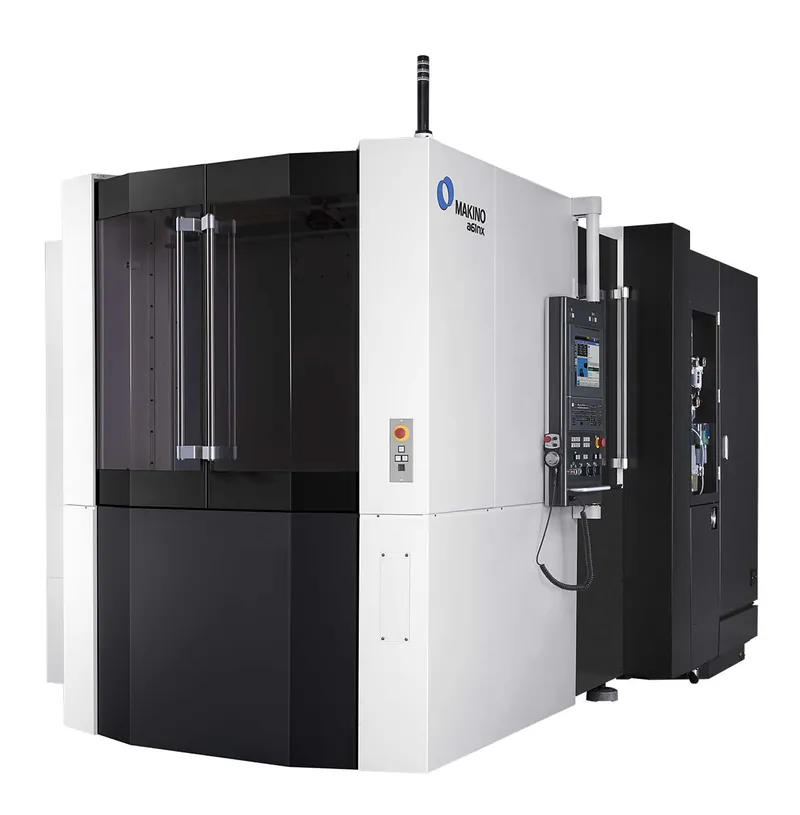

a61nx

X/Y/Z travel: 28.7" / 28.7" / 31.5"
Pallet: 19.7" x 19.7"
Spindle (rpm): 14,000 (20K)
Tool capacity: 60 tools (optional 133, 218, 313)

Get specs & pricing View full specs ↗

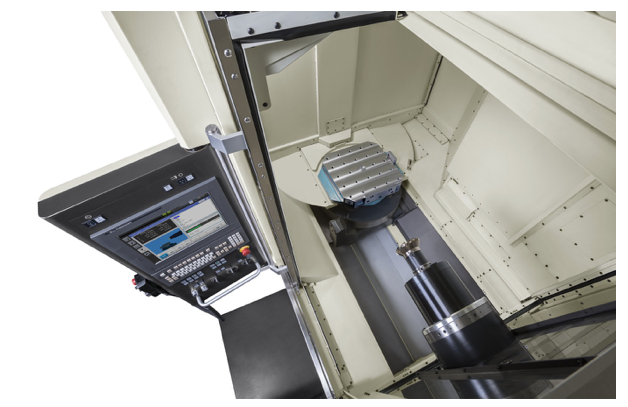

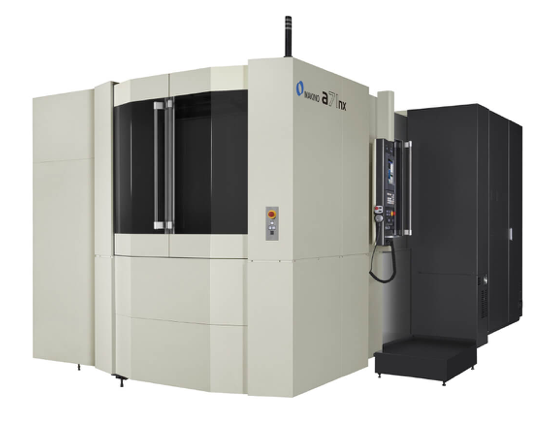

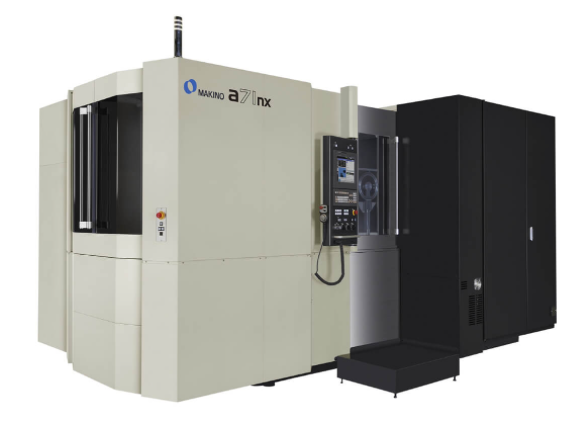

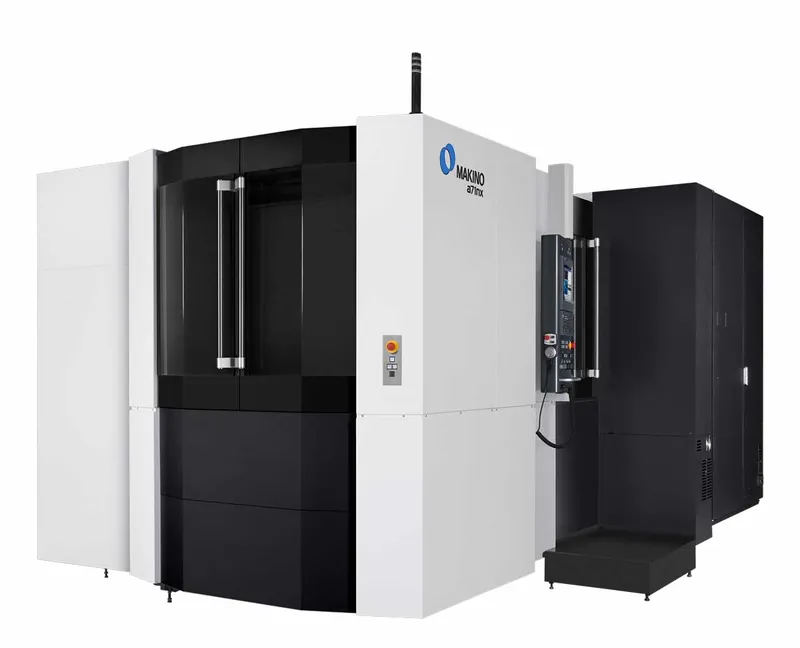

a71nx

X/Y/Z travel: 31.5" / 29.5" / 32.7"
Pallet: 19.7" x 19.7"
Spindle (rpm): 10,000
Tool capacity: 60 (136, 187 & 299)

Get specs & pricing View full specs ↗

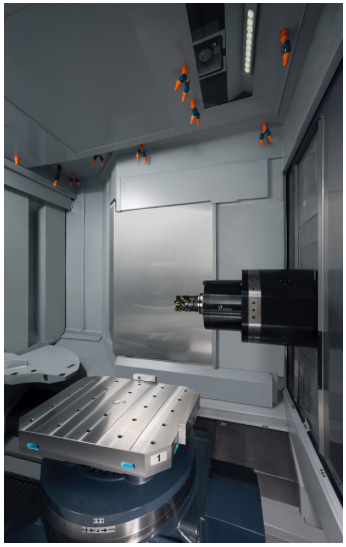

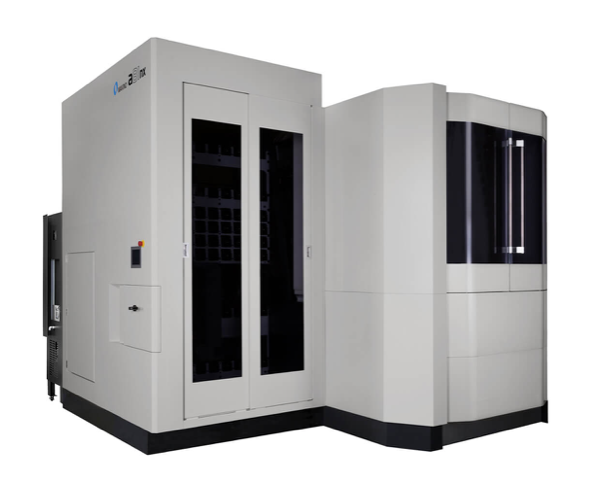

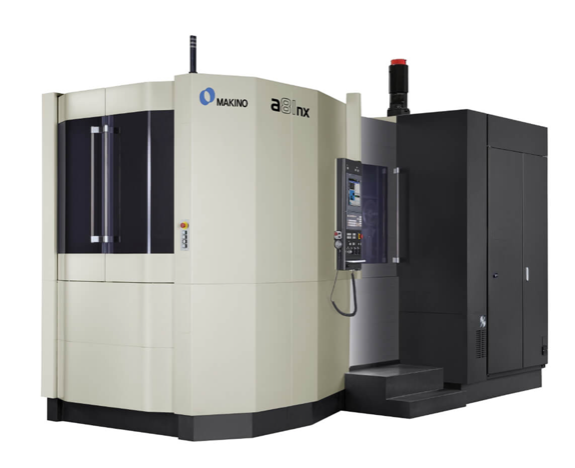

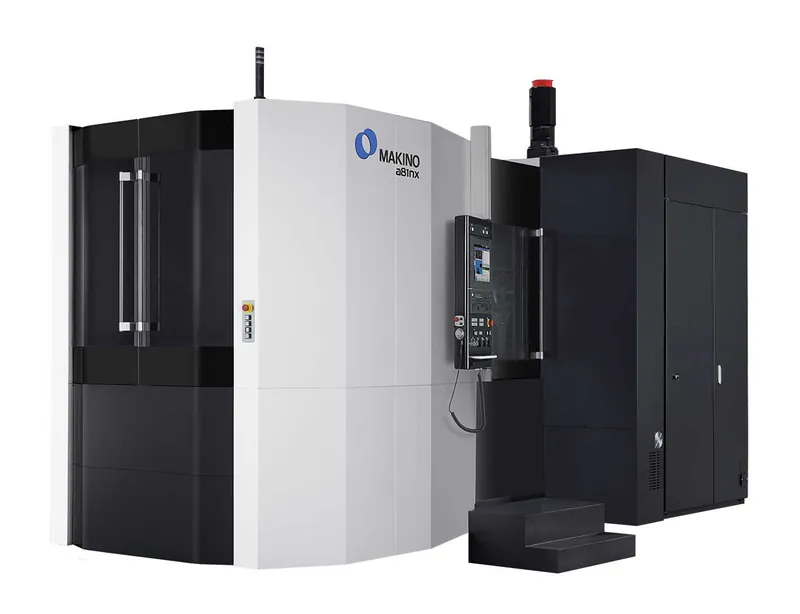

a81nx

X/Y/Z travel: 35.4" / 35.4" / 40.2"
Pallet: 24.8" x 24.8"
Spindle (rpm): 10,000 (8,000 High Torque opt)
Tool capacity: 60 (80, 136, 187, 299 opt)

Get specs & pricing View full specs ↗

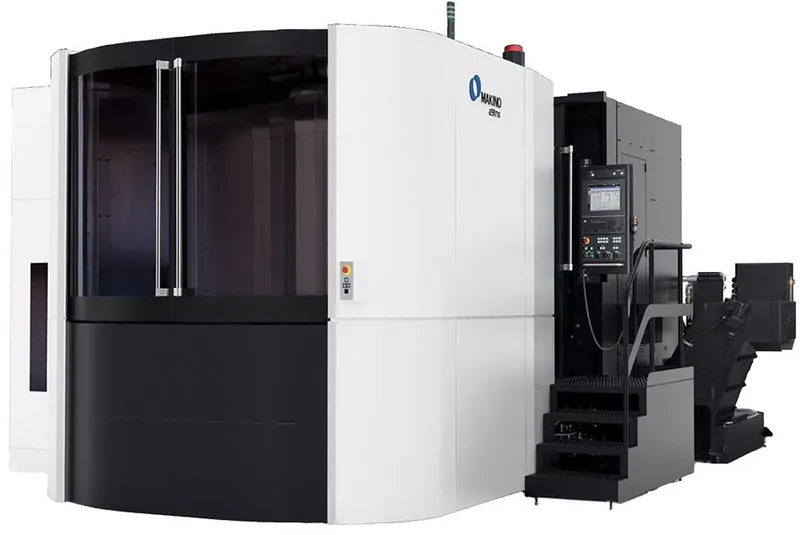

a91nx

X/Y/Z travel: 55.1" / 47.2" / 53.1"
Pallet: 31.5" x 31.5"
Spindle (rpm): 10k (8k, 15k)
Tool capacity: 60 (185, 297)

Get specs & pricing View full specs ↗

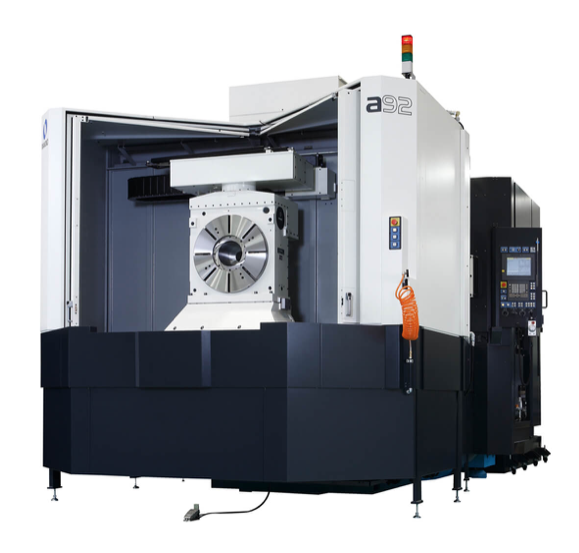

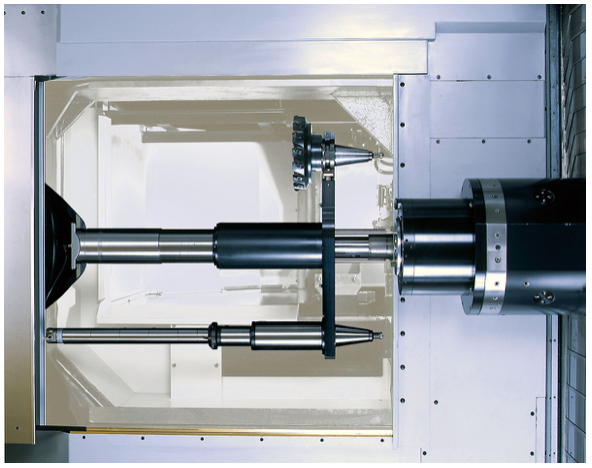

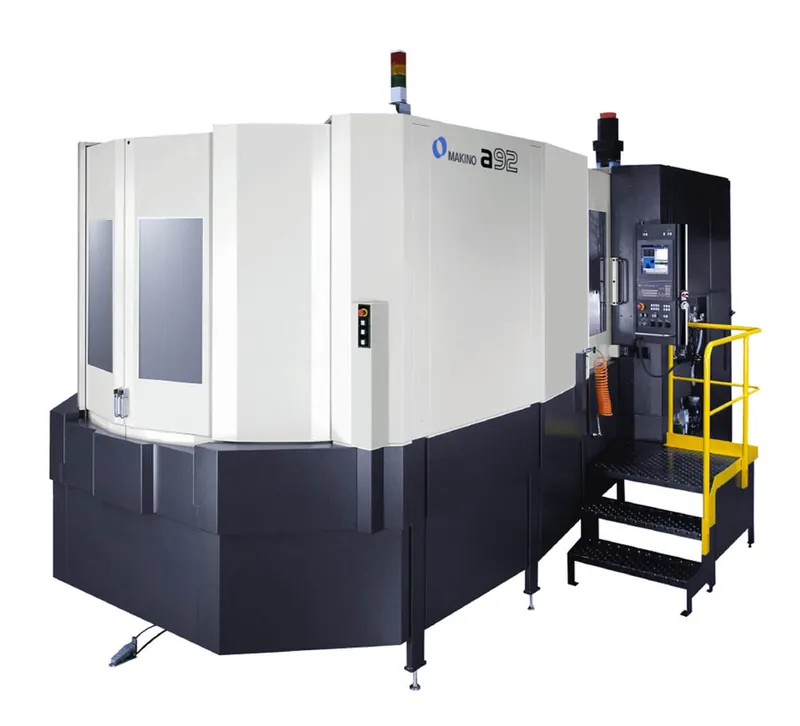

a92

X/Y/Z travel: 59.8" / 49.2" / 53.1"
Pallet: 31.5" x 39.4"
Spindle (rpm): 10,000 (8K, 20K)
Tool capacity: 40 (60, 92, 148, 204, 316)

Get specs & pricing View full specs ↗

Request a quote on a Makino Horizontal Machining Centers machine
Ellis Machinery & Equipment, Inc. · 6225 20th Street E, Fife, WA 98424 · 253-926-6868 · Monday–Friday, 8:00 AM–4:30 PM

Request a quote

Vertical Machining Centers (3-Axis)

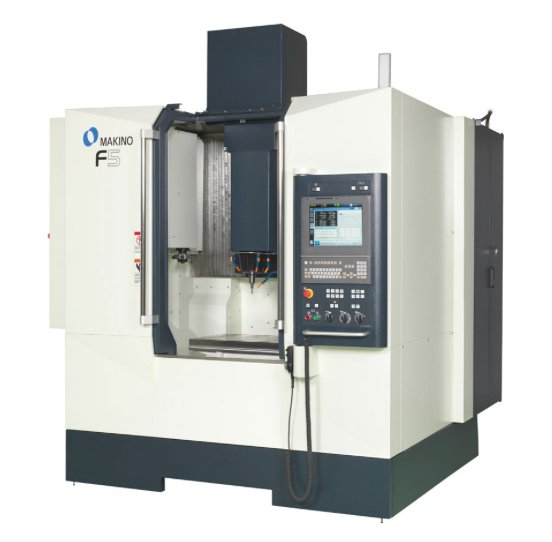

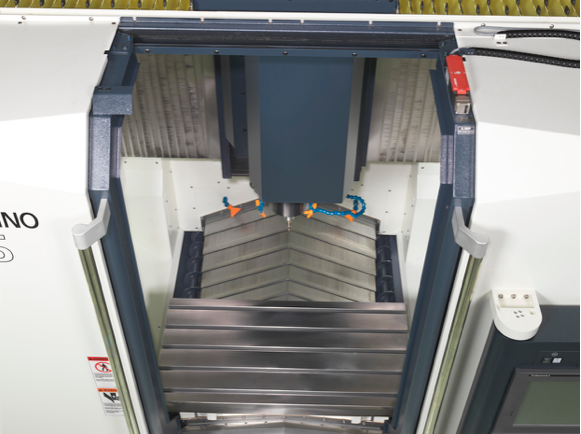

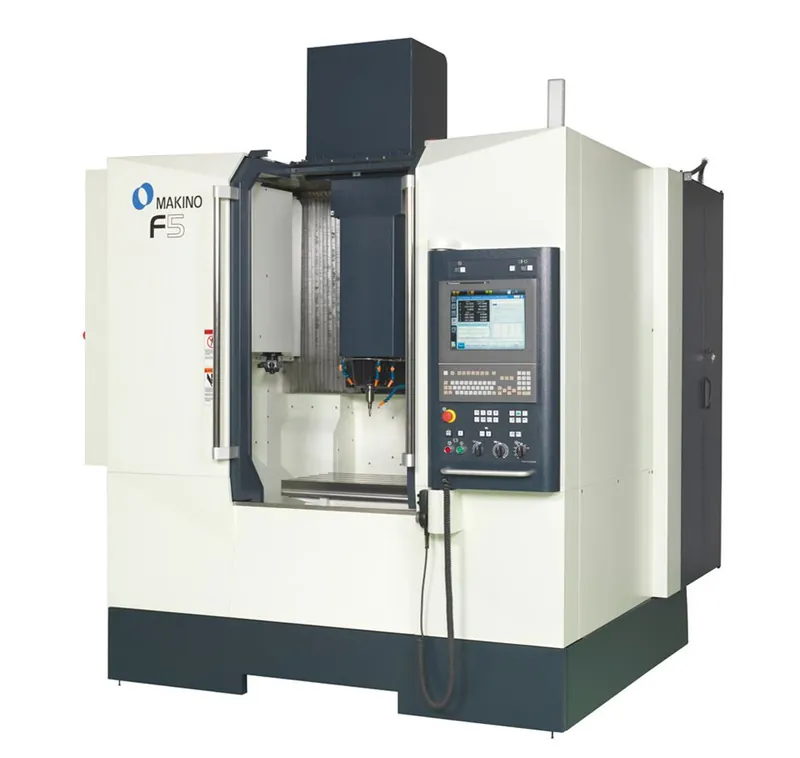

F5

X/Y/Z travel: 35.4" / 19.7" / 17.7"
Table size: 39.4" x 19.7"
Spindle (rpm): 20,000 (Optional: 30,000)
Tool capacity: 30

Get specs & pricing View full specs ↗

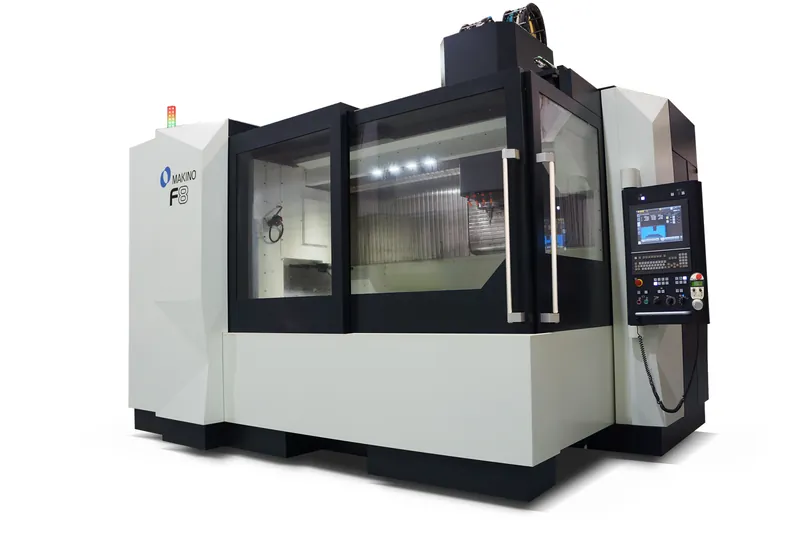

F8

X/Y/Z travel: 51.2" / 31.5" / 25.6"
Table size: 61" x 31.5"
Spindle (rpm): 10,000
Tool capacity: 30 tools

Get specs & pricing View full specs ↗

F9

X/Y/Z travel: 63" / 31.5" / 25.6"
Table size: 72.8" x 31.5"
Spindle (rpm): 10,000
Tool capacity: 30

Get specs & pricing View full specs ↗

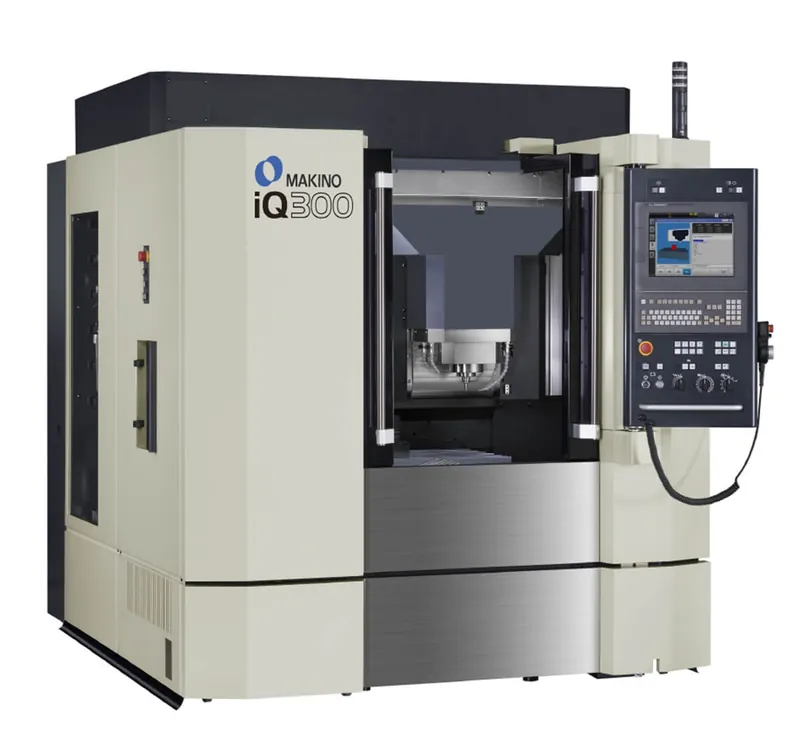

iQ300

X/Y/Z travel: 15.7" / 13.78" / 7.87"
Table size: 23.6" x 15.7"
Spindle (rpm): 45,000
Tool capacity: 40

Get specs & pricing View full specs ↗

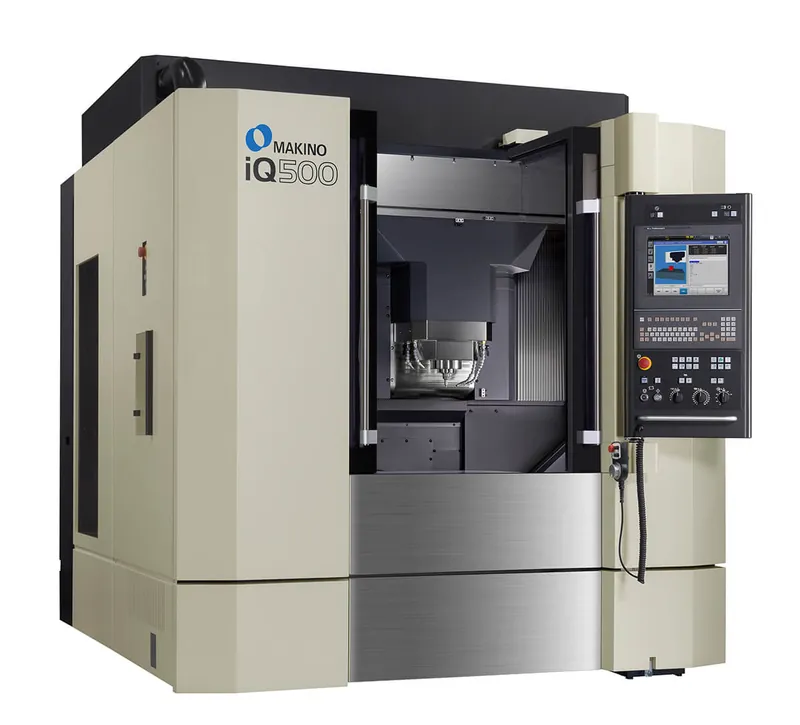

iQ500

X/Y/Z travel: 23.6" / 19.7" / 11.8"
Table size: 31.5" x 19.7"
Spindle (rpm): 45,000
Tool capacity: 40

Get specs & pricing View full specs ↗

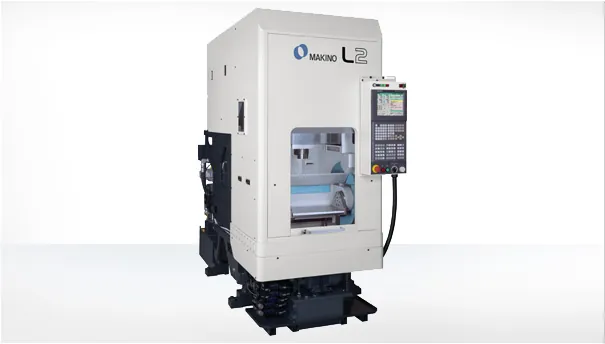

L2 APC

X/Y/Z travel: 15.7" / 11.8" / 11.8"
Table size: 4.75" diameter
Spindle (rpm): 16,000 (HSK-A50), Optional – 8,000 (HSK-A50)
Tool capacity: 15 (HSK-A50) – Standard (30 opt)

Get specs & pricing View full specs ↗

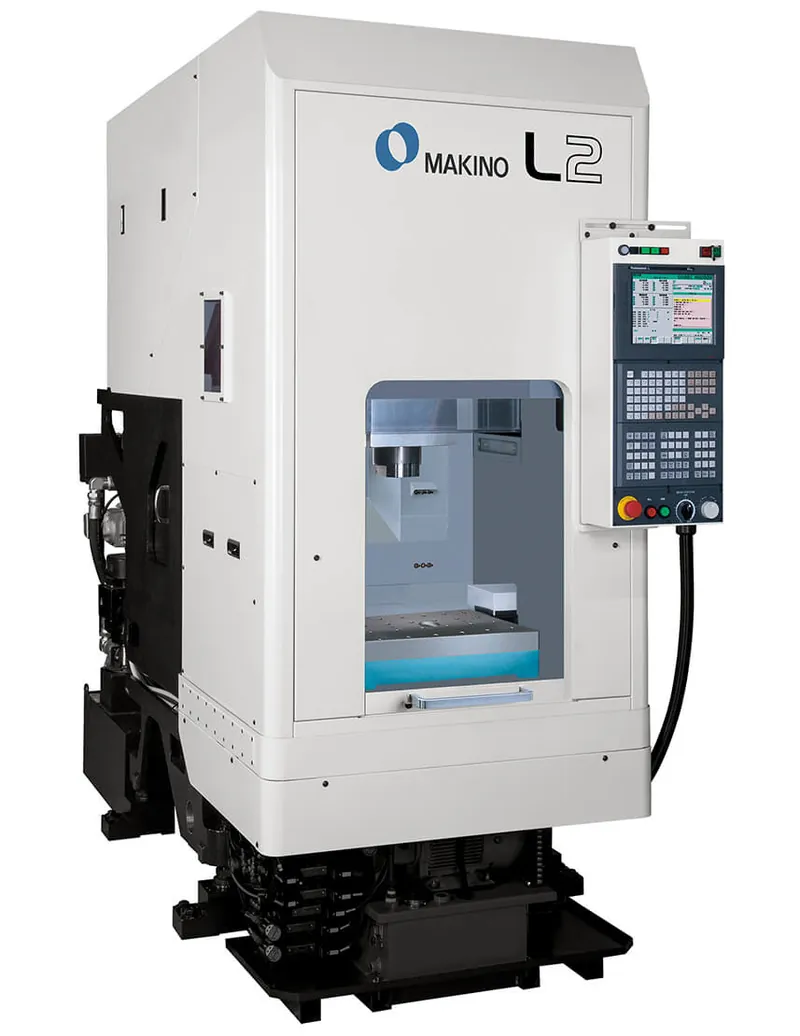

L2 TABLE

X/Y/Z travel: 15.7" / 11.8" / 11.8"
Table size: 23.62" x 15.74"
Spindle (rpm): 16,000 (HSK-A50), Optional – 8,000 (HSK-A50)
Tool capacity: 30 (HSK-A50) – Standard

Get specs & pricing View full specs ↗

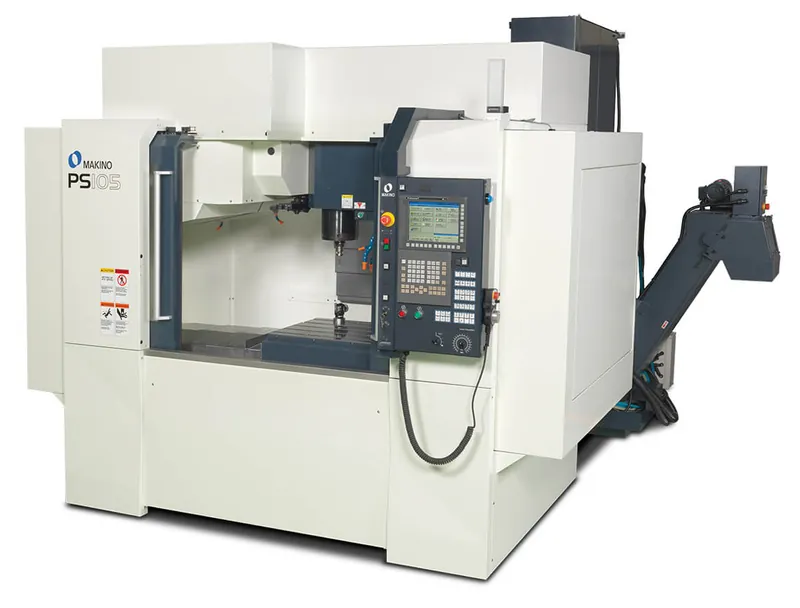

PS105

X/Y/Z travel: 41.3" / 20.0" / 18.1"
Table size: 51.1" x 20"
Spindle (rpm): 14,000
Tool capacity: 30 tools (60 opt)

Get specs & pricing View full specs ↗

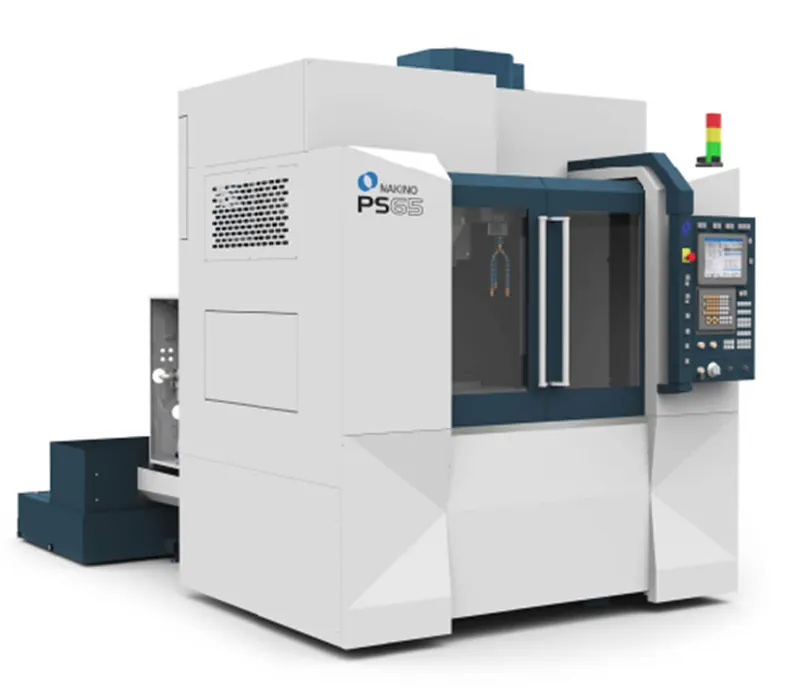

PS65

X/Y/Z travel: 26.0" / 20.0" / 18.1"
Table size: 36.2" x 20.0"
Spindle (rpm): 14,000
Tool capacity: 30 tools (60 opt)

Get specs & pricing View full specs ↗

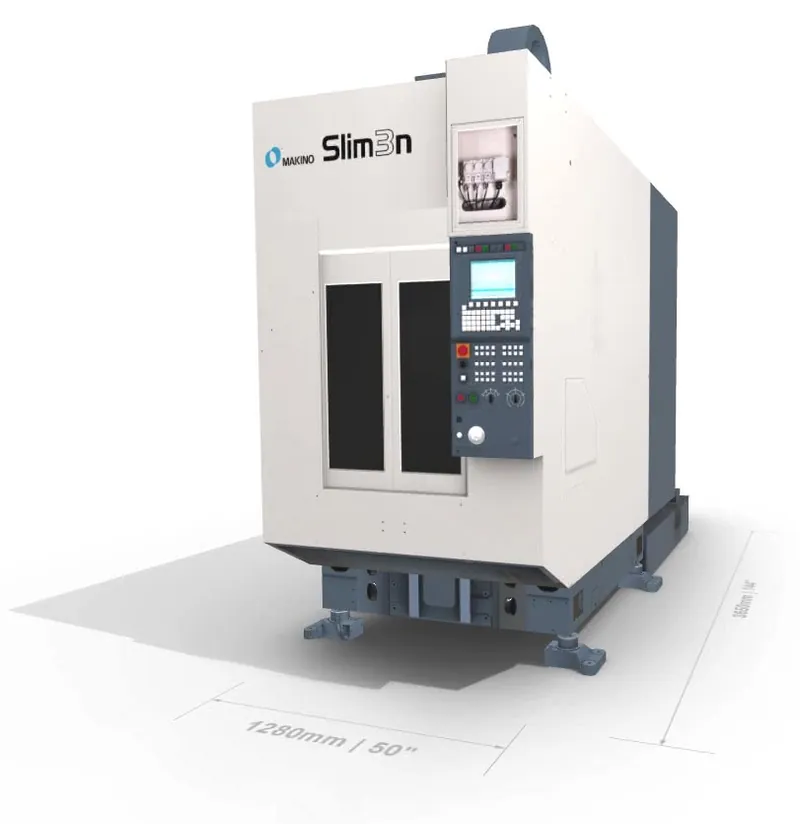

Slim3n

X/Y/Z travel: 19.7" / 15.7" / 15.7"
Table size: 23.6" x 15.7"
Spindle (rpm): 16,000 (optional 8,000)
Tool capacity: 26

Get specs & pricing View full specs ↗

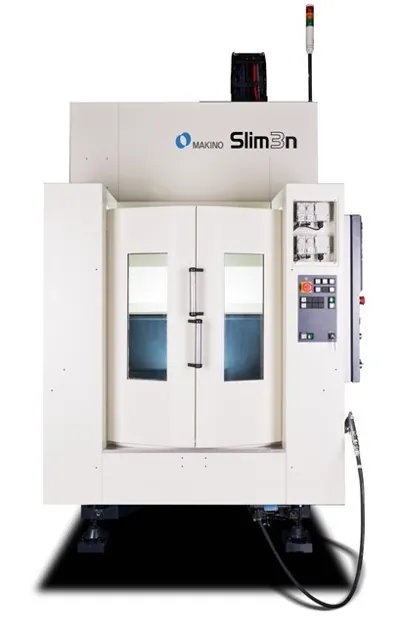

Slim3n APC

X/Y/Z travel: 19.7" / 15.7" / 15.7"
Pallet: 21.6" x 11.8"
Spindle (rpm): 16,000 (optional 8,000)
Tool capacity: 26

Get specs & pricing View full specs ↗

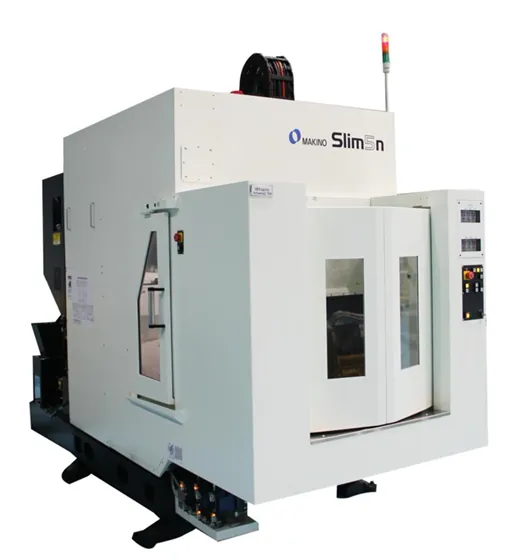

Slim5n APC

X/Y/Z travel: 27.95" / 15.74" / 16.14"
Pallet: 35.4" x 23.3"
Spindle (rpm): 16,000 (optional 8,000)
Tool capacity: 24

Get specs & pricing View full specs ↗

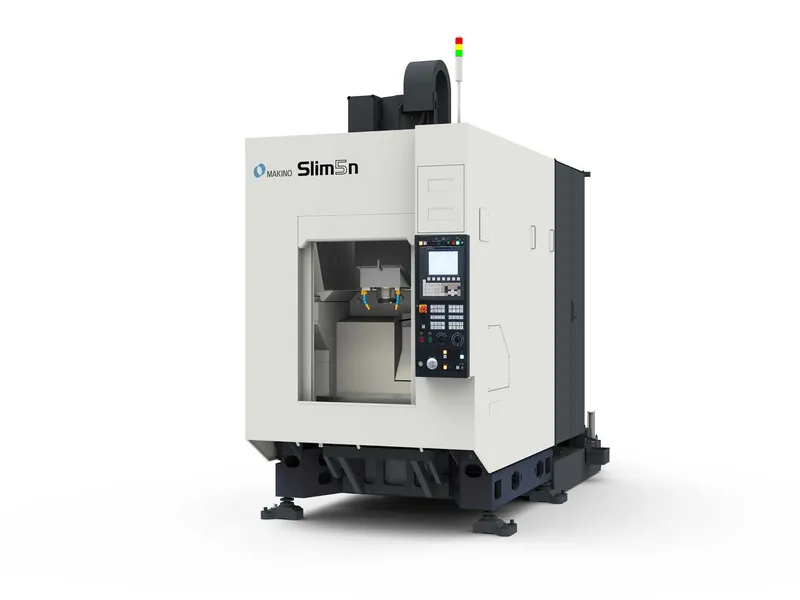

Slim5n

X/Y/Z travel: 27.95" / 15.75" / 16.14"
Table size: 31.49" x 15.74"
Spindle (rpm): 16,000 (optional 8,000)
Tool capacity: 26

Get specs & pricing View full specs ↗

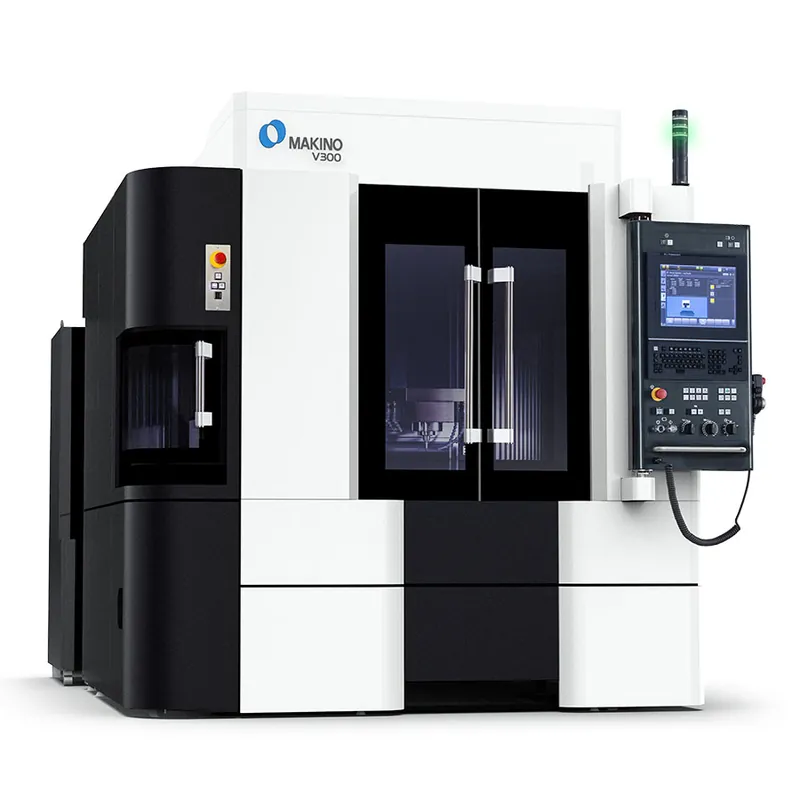

V300

X/Y/Z travel: 25.59" / 17.72" / 13.78"
Table size: 31.49" x 17.72
Spindle (rpm): 20,000
Tool capacity: 20 (40,60 opt)

Get specs & pricing View full specs ↗

Request a quote on a Makino Vertical Machining Centers machine
Ellis Machinery & Equipment, Inc. · 6225 20th Street E, Fife, WA 98424 · 253-926-6868 · Monday–Friday, 8:00 AM–4:30 PM

Request a quote

5-Axis Machining Centers: Horizontal

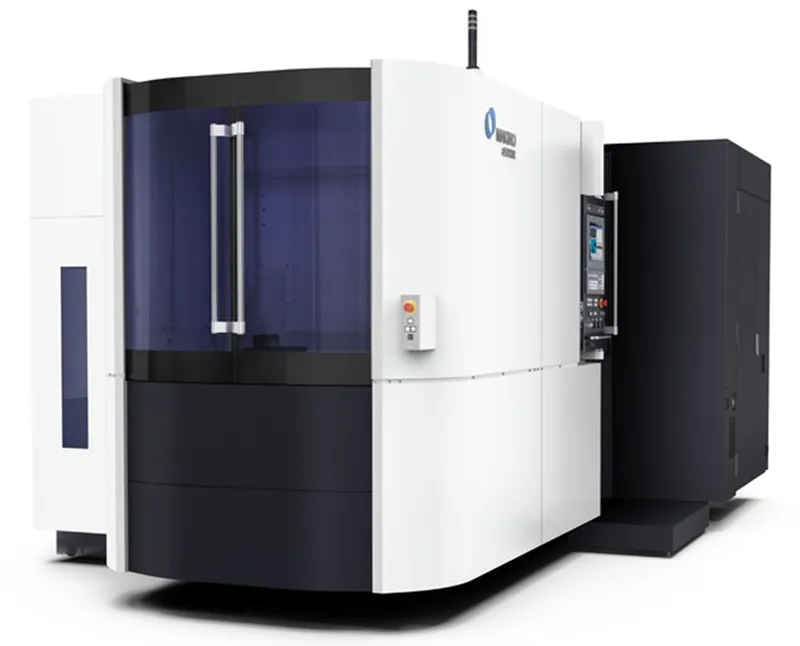

a500iR

X/Y/Z travel: 35.4" / 29.5" / 31.5"
Spindle (rpm): 14,000 (std) / 20,000 & 24,000 (opts.)
Tool capacity: 90 tools (std) / 133, 218, 311 tools (opts.)

Get specs & pricing View full specs ↗

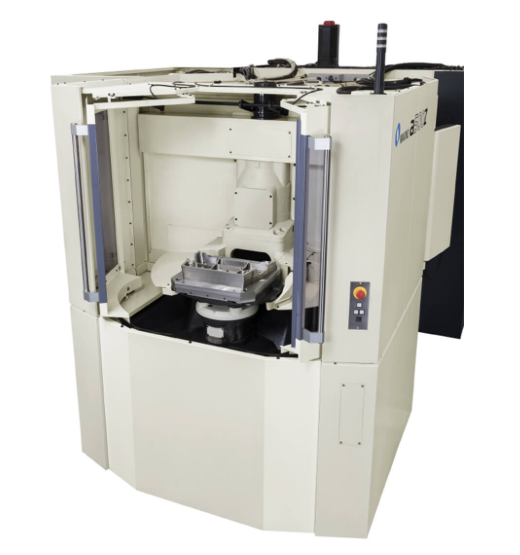

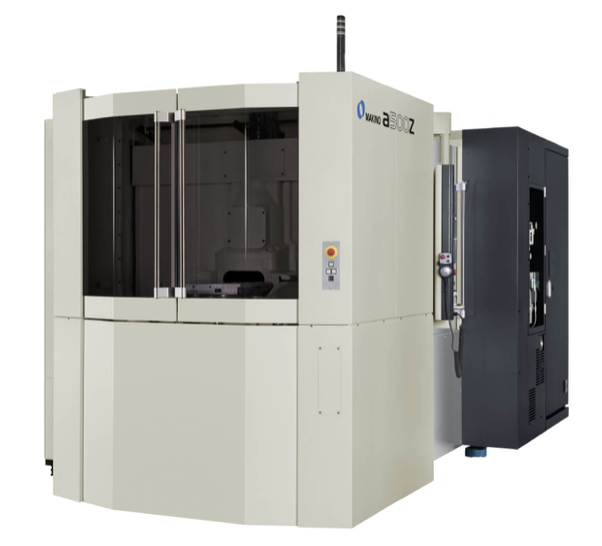

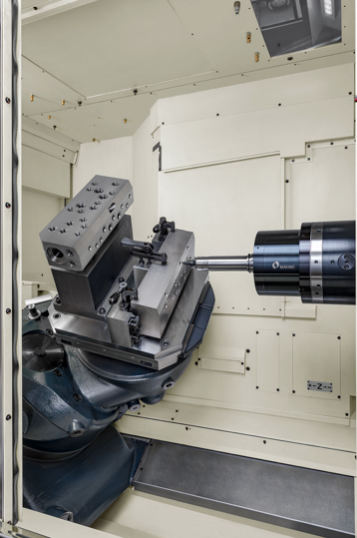

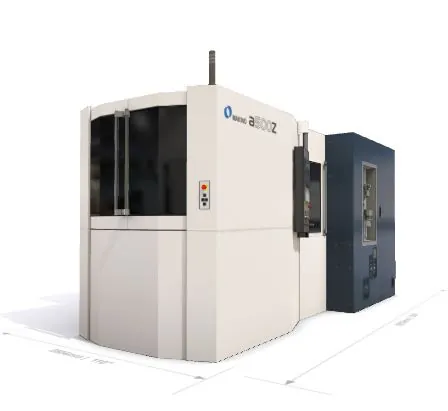

a500Z

X/Y/Z travel: 28.7" / 29.5" / 19.7" – 27.6"
Pallet: 19.7"
Spindle (rpm): 14,000 (std.) / 20,000 (opt.)
Tool capacity: 60 (std.) / 133, 218, 313 (opts.)

Get specs & pricing View full specs ↗

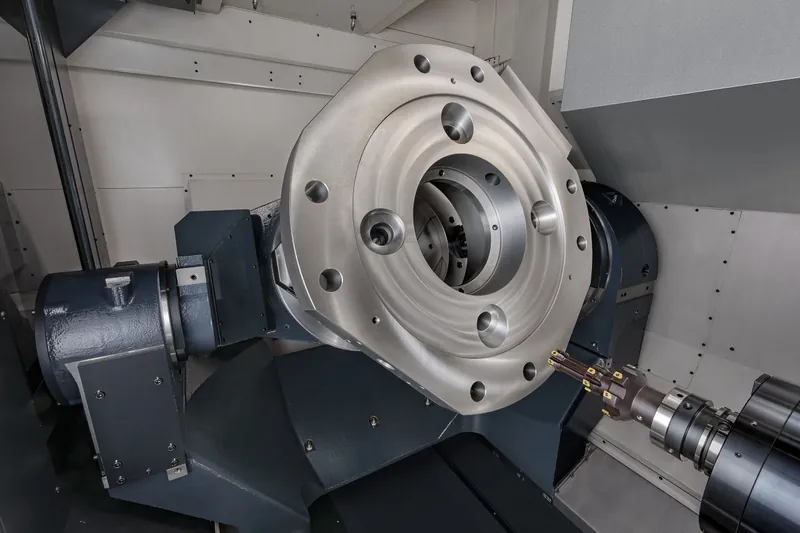

a630iT

X/Y/Z travel: 39" / 39" / 41"
Pallet: 25"
Spindle (rpm): 10,000 (std.)/8,000(opt.)/15,000 (opt.)
Tool capacity: 136 Tools (std.)

Get specs & pricing View full specs ↗

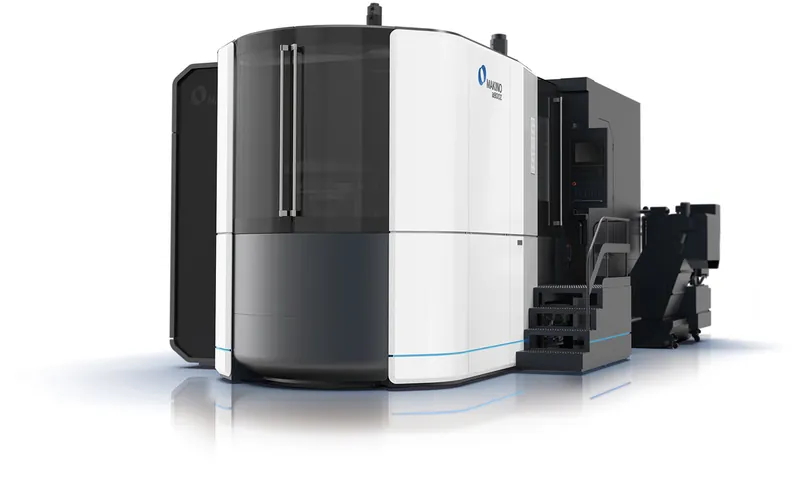

a800Z

X/Y/Z travel: 50.4 " / 47.2 " / 44.1" – 52.2"
Pallet: 24.8"
Spindle (rpm): 10,000 (std.) / 8,000 (opt.)
Tool capacity: 60 (std.)

Get specs & pricing View full specs ↗

a900Z

X/Y/Z travel: 55.1" / 47.2" / 46.7" – 49.8"
Pallet: 31.5"
Spindle (rpm): 10,000 (std.) / 8,000 (opt.) / 15,000 (opt.)
Tool capacity: 60 (std.) / 185 (opt.)

Get specs & pricing View full specs ↗

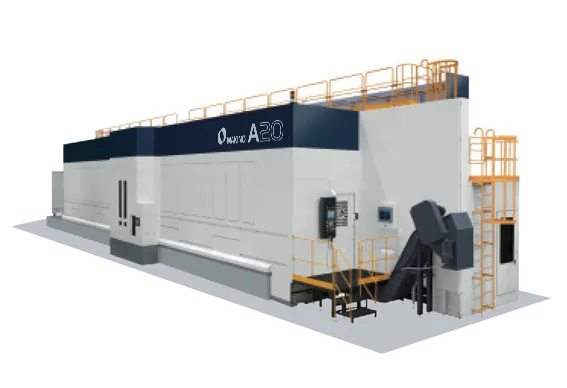

MAG A12-MAG A20.H

X/Y/Z travel: Up to 795.3" / Up to 98.4" / Up to 25.6"
Pallet: Up to 787.4" x 90.6"
Spindle (rpm): 33,000
Tool capacity: 120

Get specs & pricing View full specs ↗

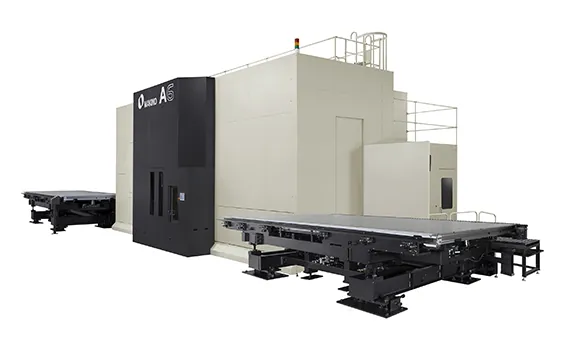

MAG A6

X/Y/Z travel: 244.1" / 86.6" / 25.6"
Pallet: 236.0" x 78.7"
Spindle (rpm): 33,000
Tool capacity: 120

Get specs & pricing View full specs ↗

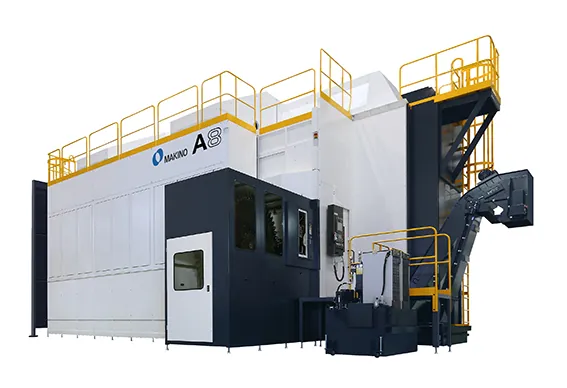

MAG A8

X/Y/Z travel: 322.8" / 86.6" / 25.6"
Pallet: 315.0" x 78.7"
Spindle (rpm): 33,000
Tool capacity: 120

Get specs & pricing View full specs ↗

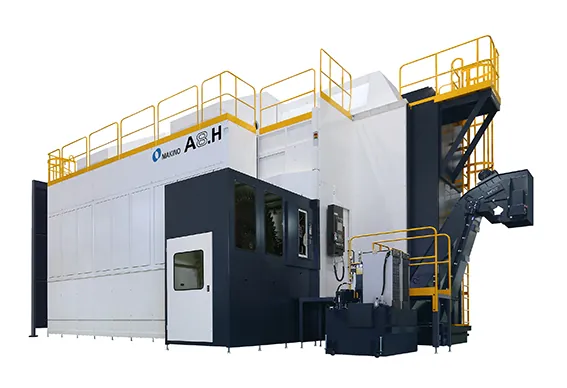

MAG A8.H

X/Y/Z travel: 322.8" / 98.4" / 25.6"
Pallet: 315.0" x 90.6"
Spindle (rpm): 33,000
Tool capacity: 120

Get specs & pricing View full specs ↗

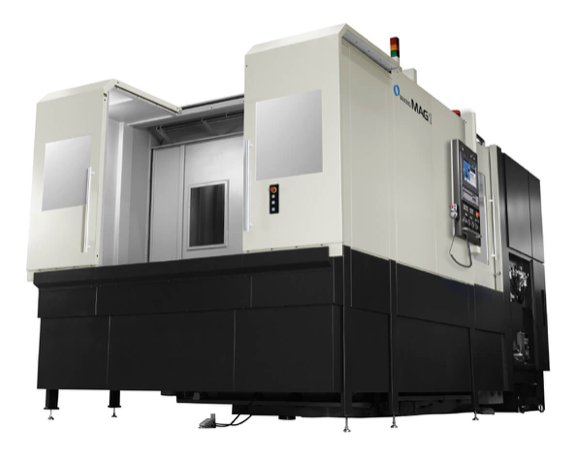

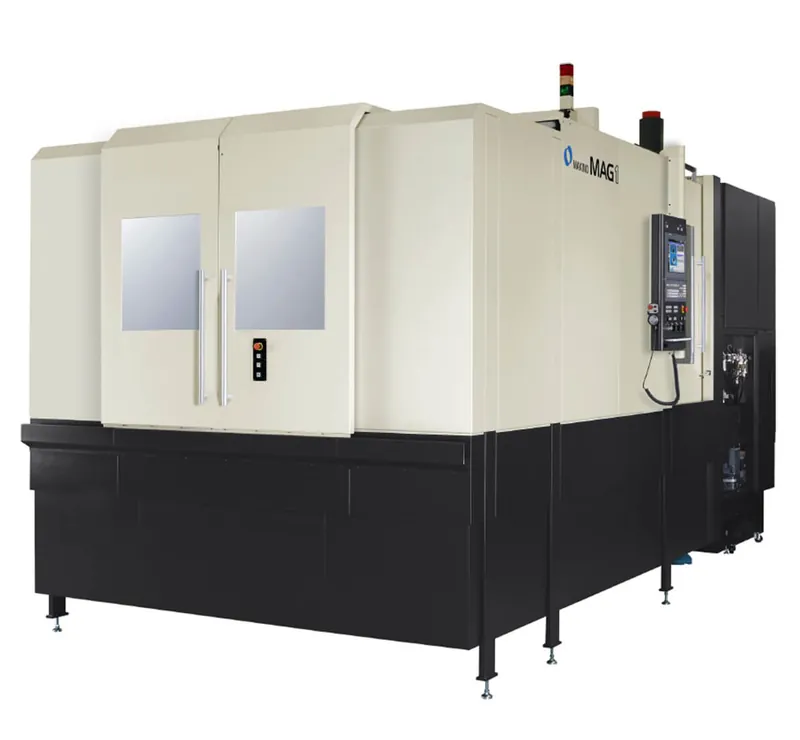

MAG1

X/Y/Z travel: 59.8" / 43.3" / 53.1"
Pallet: 31.5" x 39.4"
Spindle (rpm): 33,000 – 120 kW
Tool capacity: 120 (option 241)

Get specs & pricing View full specs ↗

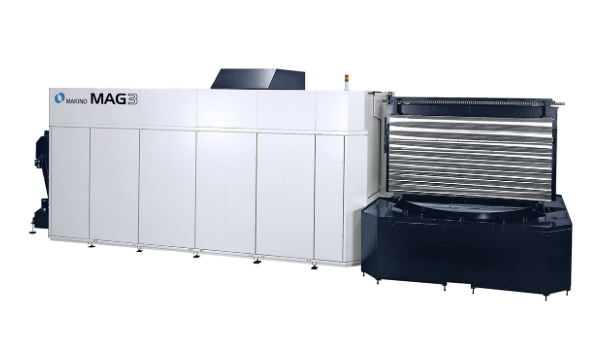

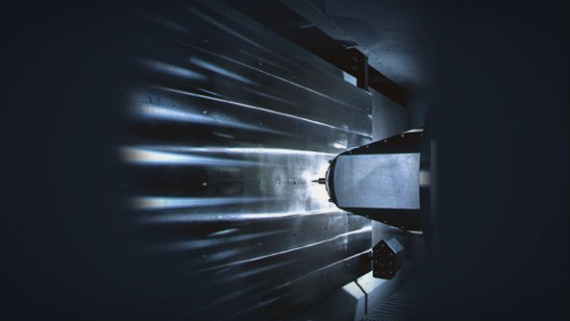

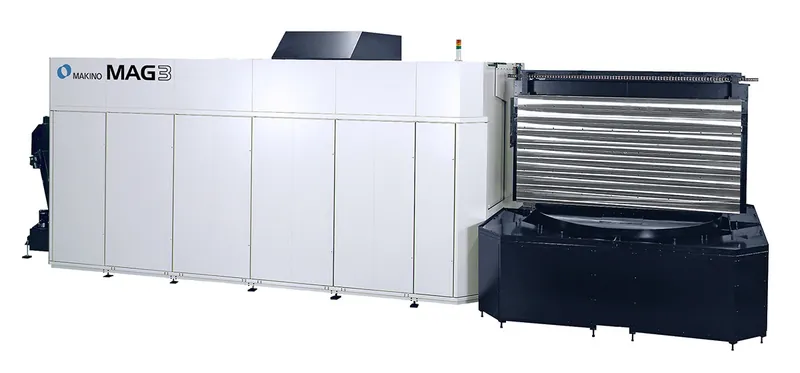

MAG3

X/Y/Z travel: 118.1" / 59" / 29.5"
Pallet: 118.1" x 59.1"
Spindle (rpm): 33,000 – 174 HP
Tool capacity: 120 (180)

Get specs & pricing View full specs ↗

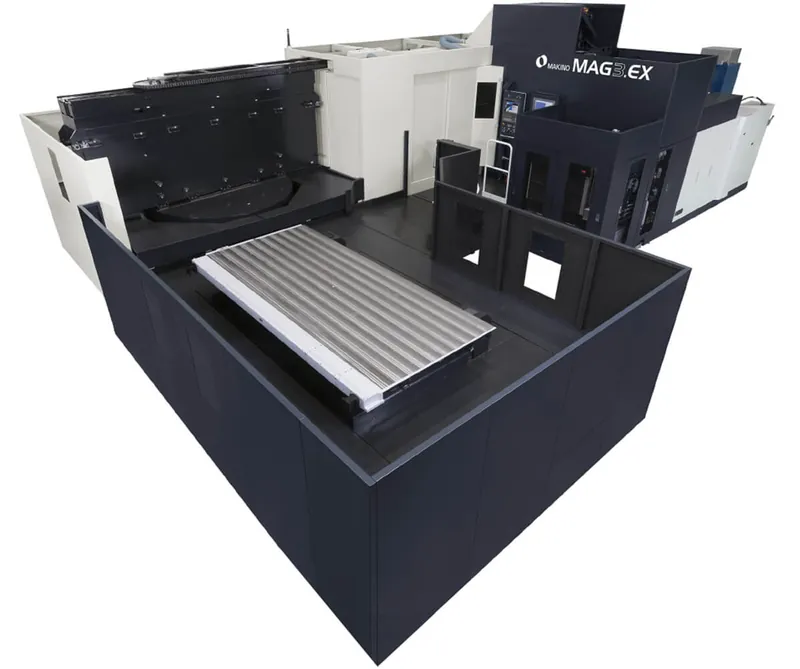

MAG3.EX

X/Y/Z travel: 157.5" / 59.1" / 39.4"
Pallet: 137" x 78.7"
Spindle (rpm): 33,000 – 174 HP
Tool capacity: 120 (180)

Get specs & pricing View full specs ↗

MAG3.W

X/Y/Z travel: 157.5" / 70.9" / 39.4"
Pallet: 137.8" x 59.1"
Spindle (rpm): 33,000 – 107 HP (161 HP)
Tool capacity: 60 (120)

Get specs & pricing View full specs ↗

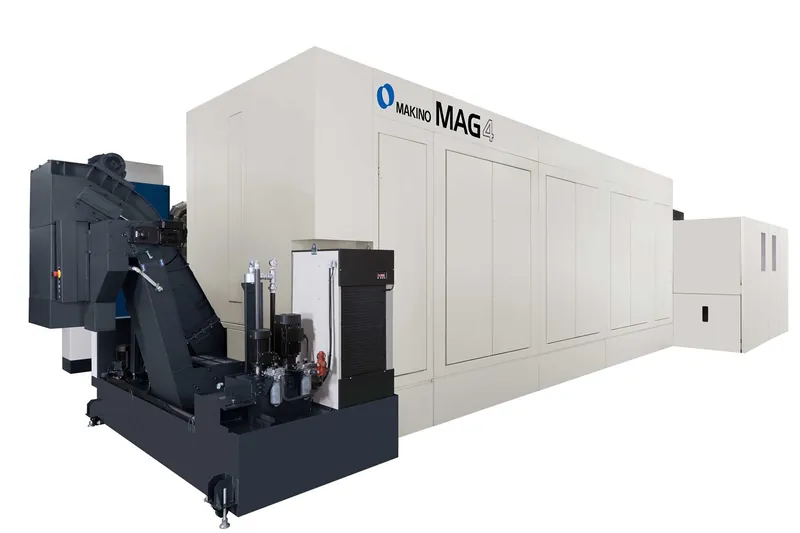

MAG4

X/Y/Z travel: 157.5" / 86.6" / 31.5"
Pallet: 137.8" x 78.7"
Spindle (rpm): 33,000 – 174 HP
Tool capacity: 120 (180)

Get specs & pricing View full specs ↗

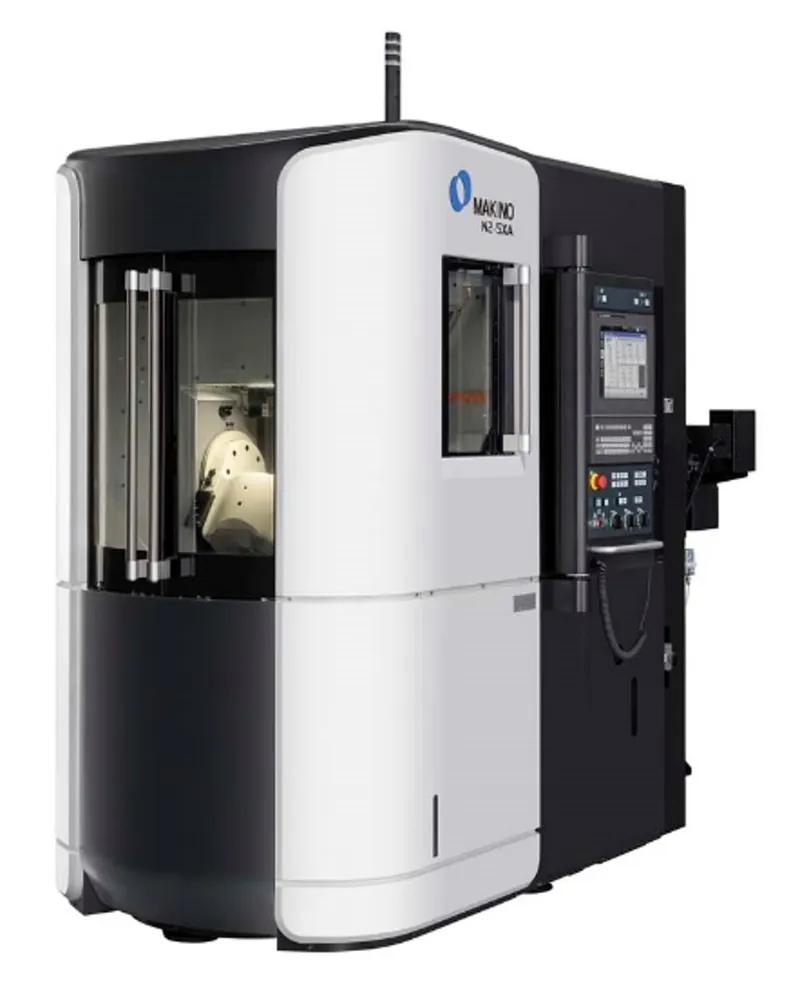

N2-5XA

X/Y/Z travel: 11.8" / 11.8" / 9.1"
Pallet: 7.87" ø
Spindle (rpm): 20,000
Tool capacity: 36 tools

Get specs & pricing View full specs ↗

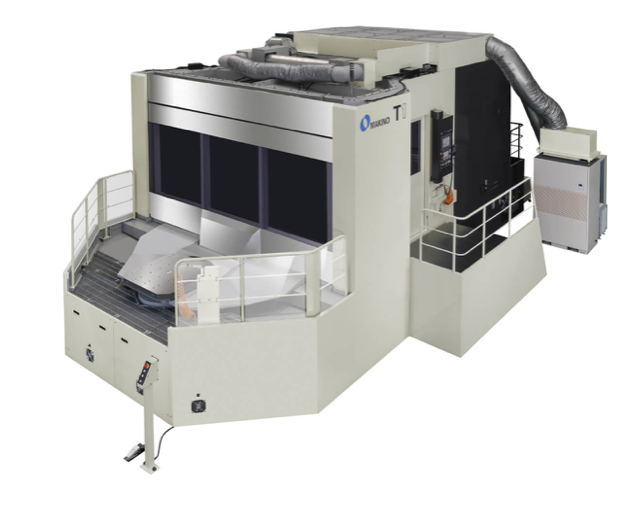

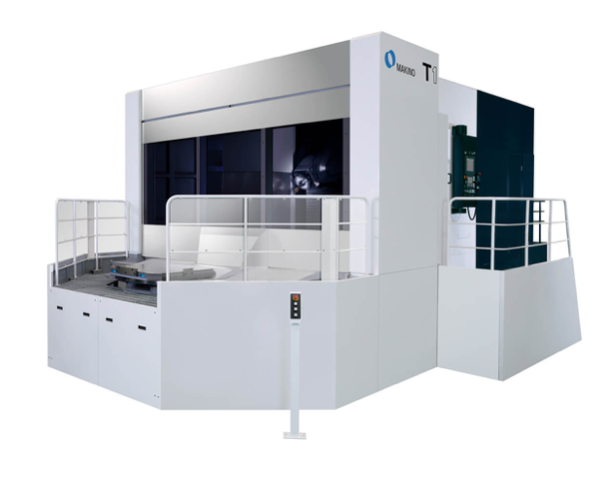

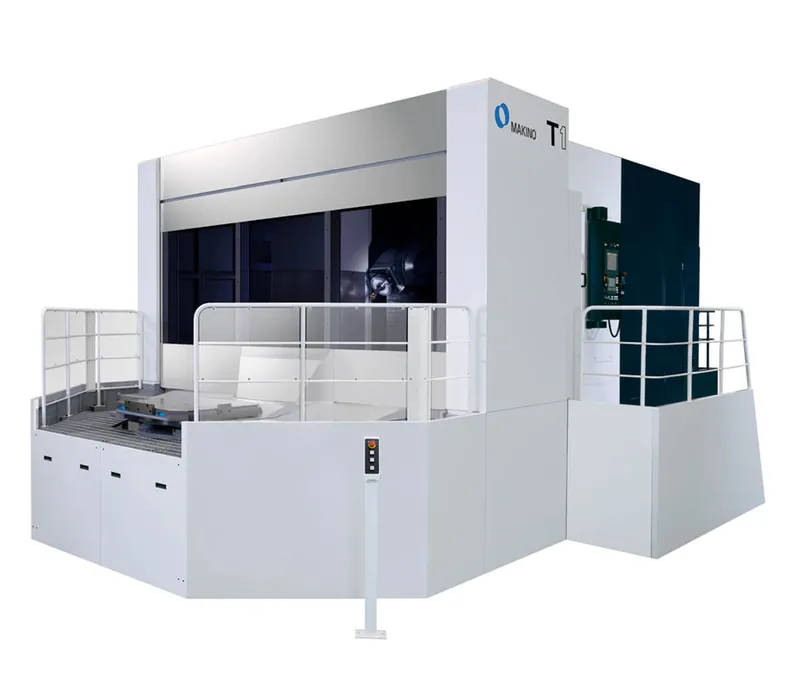

T1

X/Y/Z travel: 59.1" / 51.2" / 78.7"
Pallet: 39.37"
Spindle (rpm): 12,000
Tool capacity: 60 (96, 137 opt)

Get specs & pricing View full specs ↗

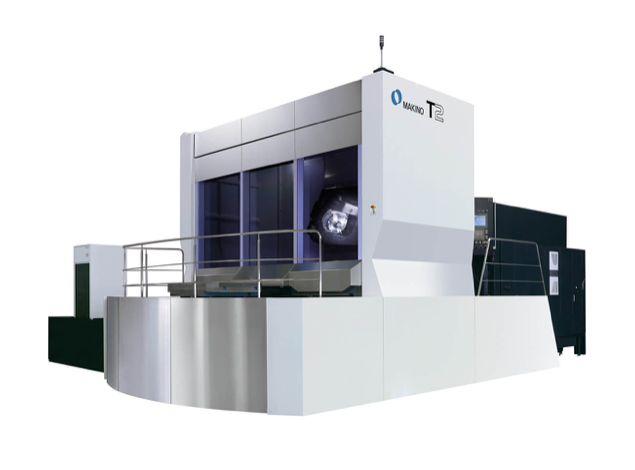

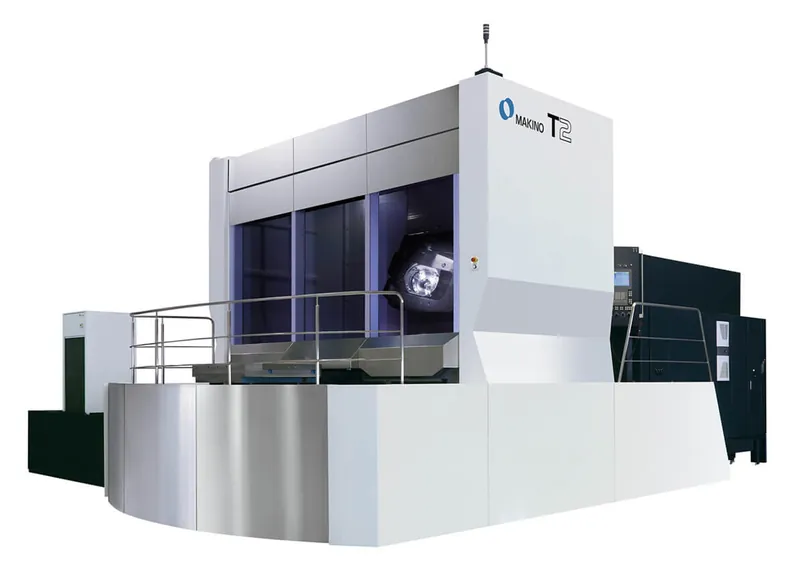

T2

X/Y/Z travel: 78.7" / 78.7" / 70.8"
Pallet: 39.4" x 49.2"
Spindle (rpm): 4,000 – 133 HP/738 ft-lbs cont.
Tool capacity: 120 tools (optional 190 tools)

Get specs & pricing View full specs ↗

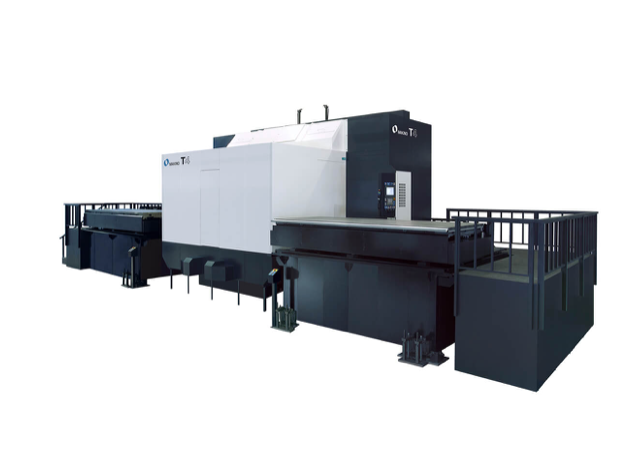

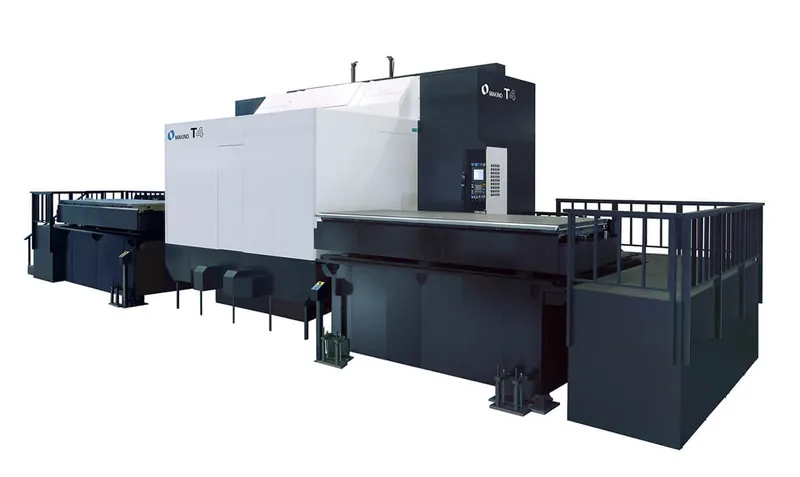

T4

X/Y/Z travel: 165.3" / 78.7" / 39.4"
Pallet: 157.5" x 59.1"
Spindle (rpm): 4,000 – 133 HP/738 ft-lbs cont.
Tool capacity: 120 tools, (optional 180 tools)

Get specs & pricing View full specs ↗

Request a quote on a Makino 5-Axis Machining Centers machine
Ellis Machinery & Equipment, Inc. · 6225 20th Street E, Fife, WA 98424 · 253-926-6868 · Monday–Friday, 8:00 AM–4:30 PM

Request a quote

5-Axis Machining Centers: Vertical

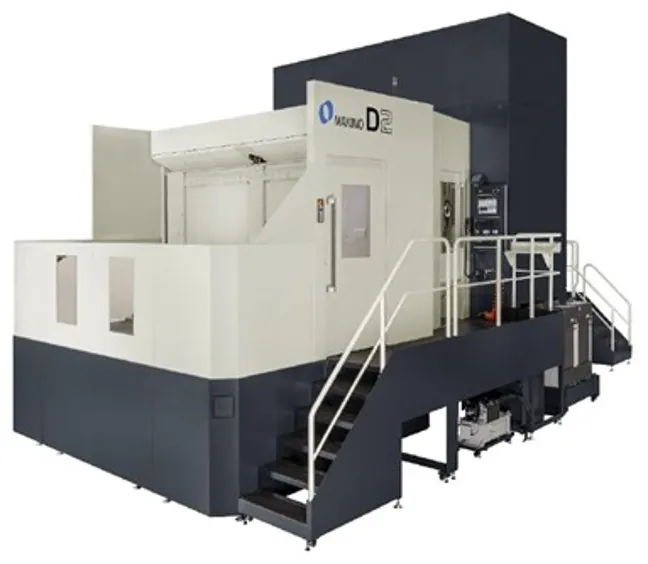

D2

X/Y/Z travel: 86.61" / 90.56" / 43.3"
Pallet: 39.6" x 39.6" & 49.2" x 39.6"
Spindle (rpm): 15,000 (HSK – A100)
Tool capacity: 60 (136)

Get specs & pricing View full specs ↗

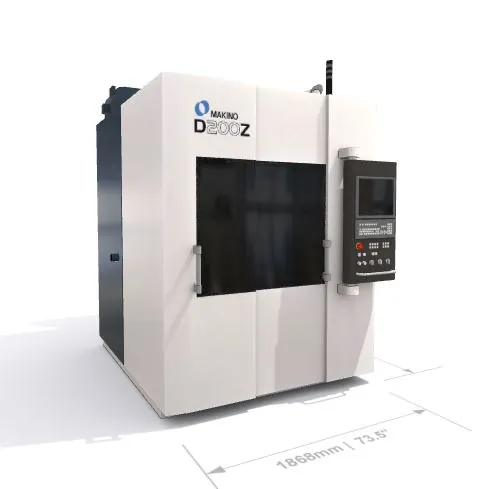

D200Z

X/Y/Z travel: 13.7" / 11.8" / 9.8"
Table size: 11.81" diameter
Spindle (rpm): 30,000 – HSK-E50 (Standard)
Tool capacity: 20 + 1 – HSK-E50 (Standard)

Get specs & pricing View full specs ↗

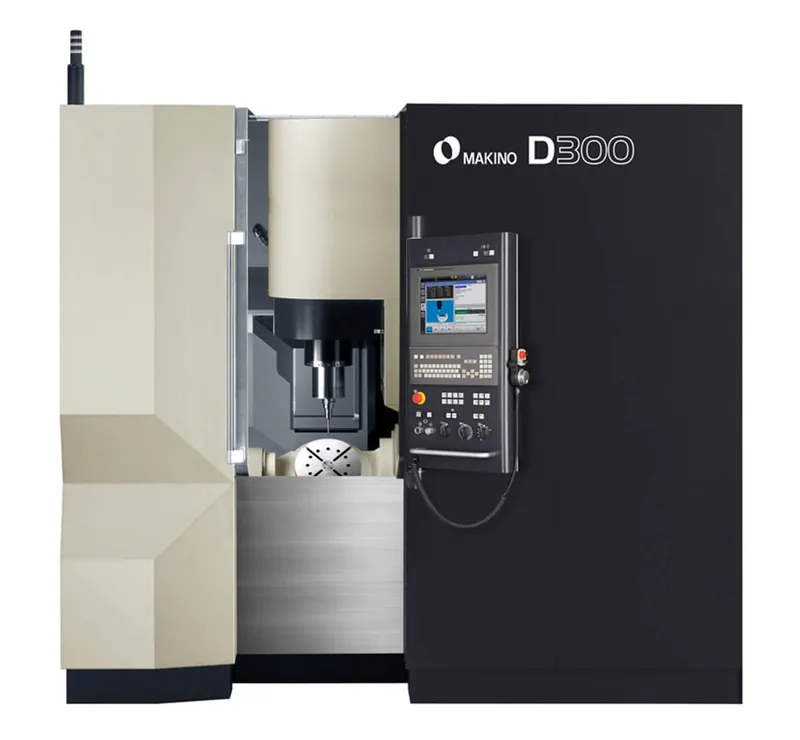

D300

X/Y/Z travel: 11.8" / 19.7" / 13.8"
Table size: 11.8" diameter
Spindle (rpm): 15K (20K, 30K opt)
Tool capacity: 60 (124, 212 opt)

Get specs & pricing View full specs ↗

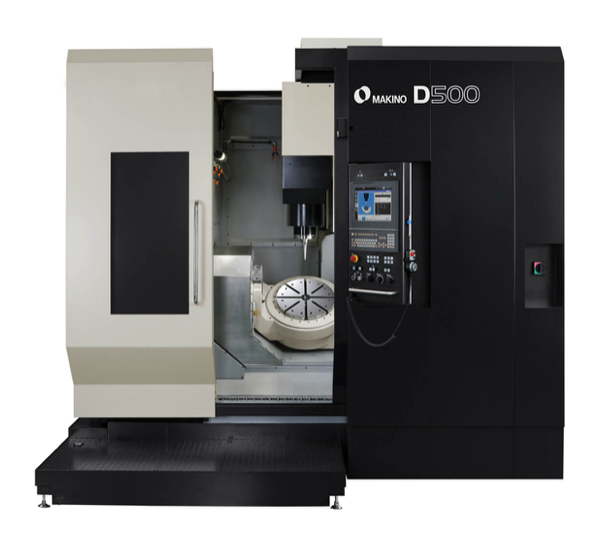

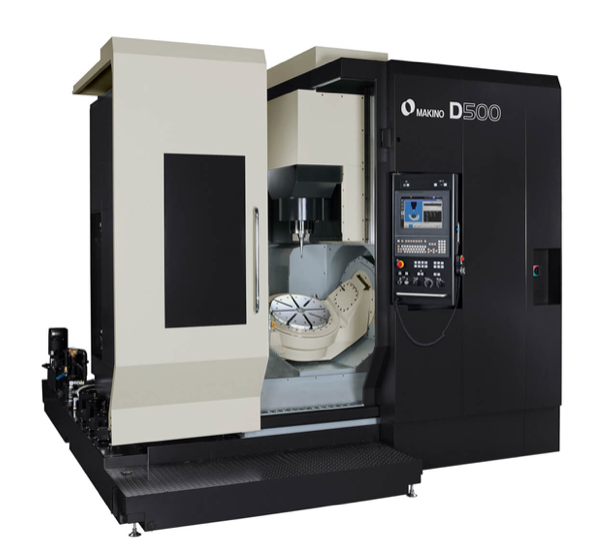

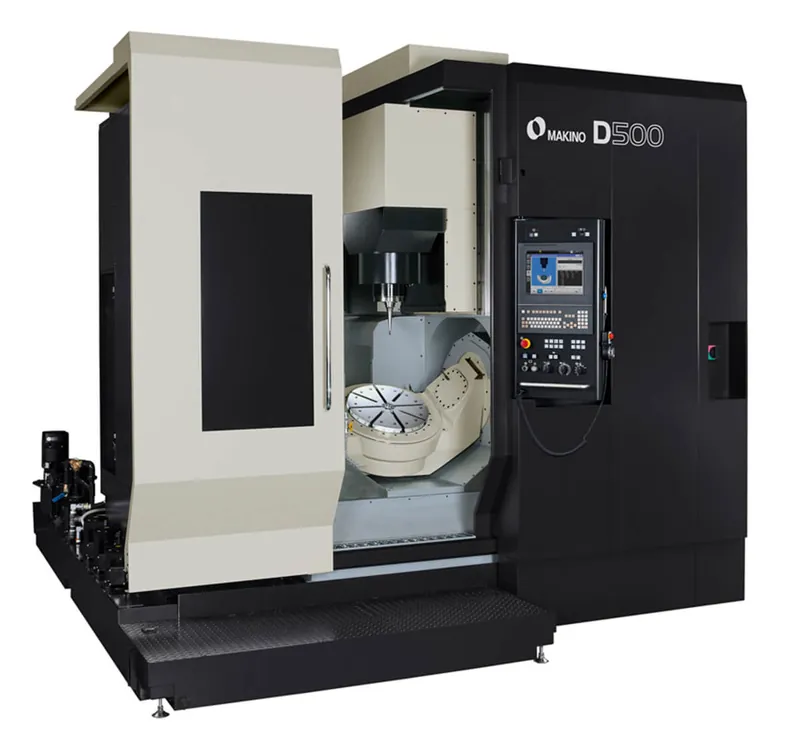

D500

X/Y/Z travel: 21.6" / 39.4" / 19.7"
Pallet: 15.7" x 15.7"
Spindle (rpm): 14 K (12K, 20K, 30K opt)
Tool capacity: 60 (80, 113,155,197,239,281,323 opt)

Get specs & pricing View full specs ↗

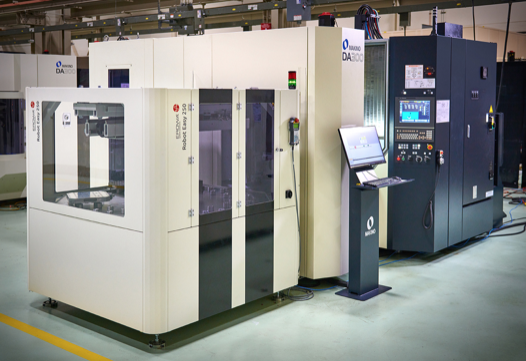

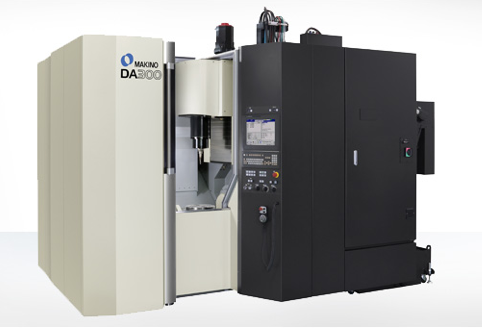

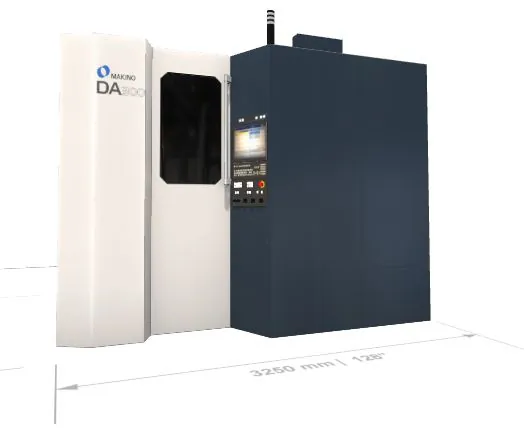

DA300

X/Y/Z travel: 17.7" / 25.6" / 19.7"
Table size: 11.81" x 13.38"
Spindle (rpm): 20,000 (HSK – A63)
Tool capacity: 60 std, (118 & 311 opt)

Get specs & pricing View full specs ↗

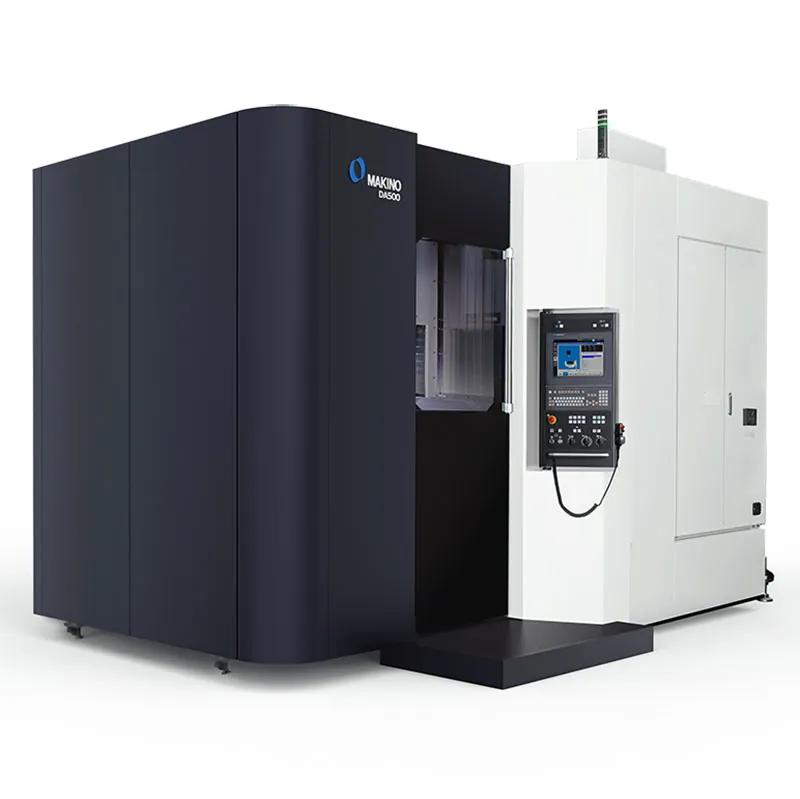

DA500

X/Y/Z travel: 31.49" / 35.43" / 21.65"
Pallet: 15.74" x 15.74"
Spindle (rpm): 20K (14K opt.)
Tool capacity: 60 std, (118 & 311 opt)

Get specs & pricing View full specs ↗

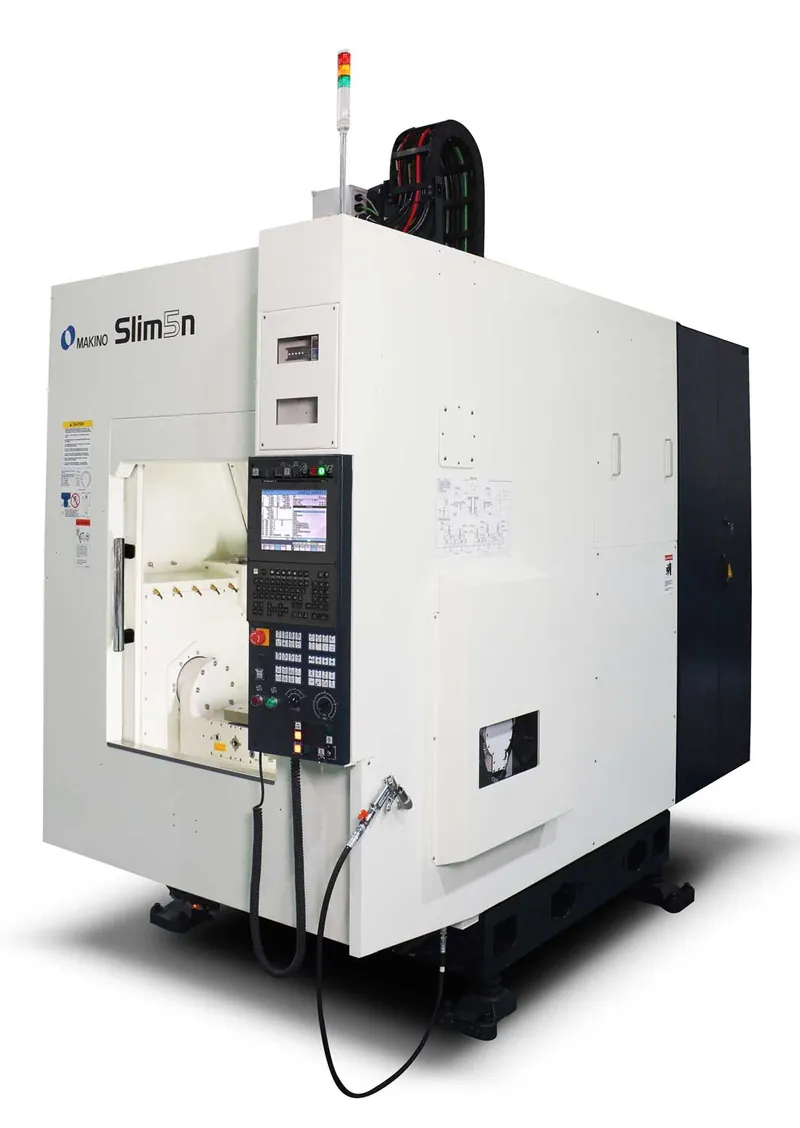

Slim5n 4+1

X/Y/Z travel: 27.95" / 15.75" / 16.14"
Table size: ø 21.65" x 11.81"
Spindle (rpm): 16,000 (optional 8,000)
Tool capacity: 26

Get specs & pricing View full specs ↗

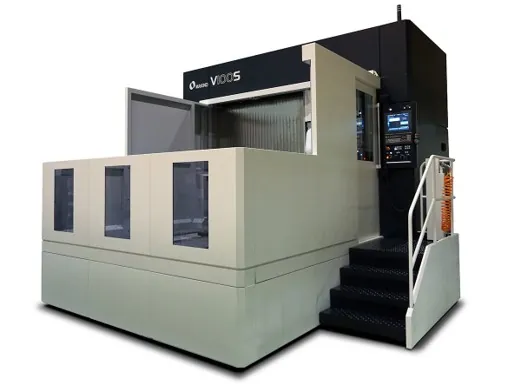

V100S

X/Y/Z travel: 78.7" / 98.42" / 31.5"
Table size: 78.73" x 98.42"
Spindle (rpm): 20,000 (HSK-A63)
Tool capacity: 40 (120 opt)

Get specs & pricing View full specs ↗

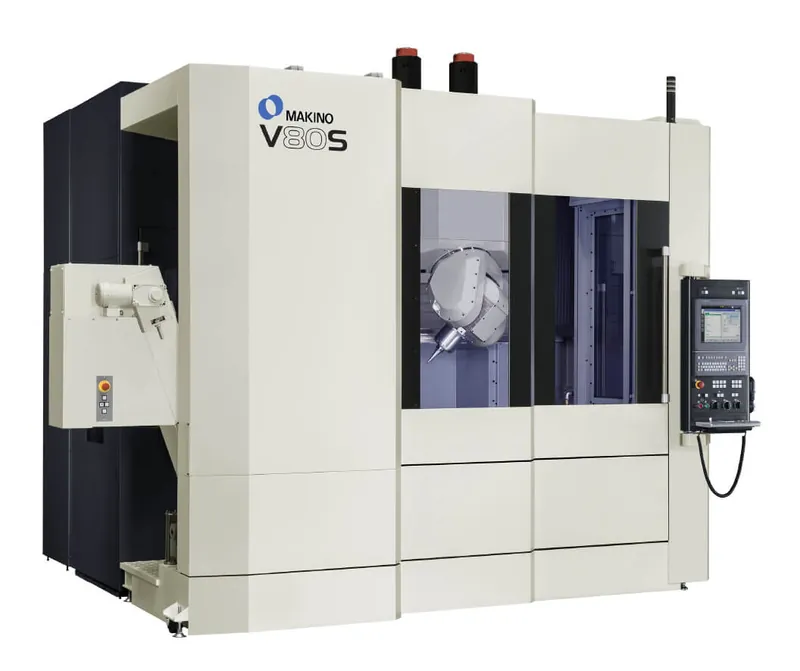

V80S

X/Y/Z travel: 51.2" / 39.3" / 23.6"
Table size: 51.81" x 39.37"
Spindle (rpm): 20,000 (HSK – A63)
Tool capacity: 40 (120 opt)

Get specs & pricing View full specs ↗

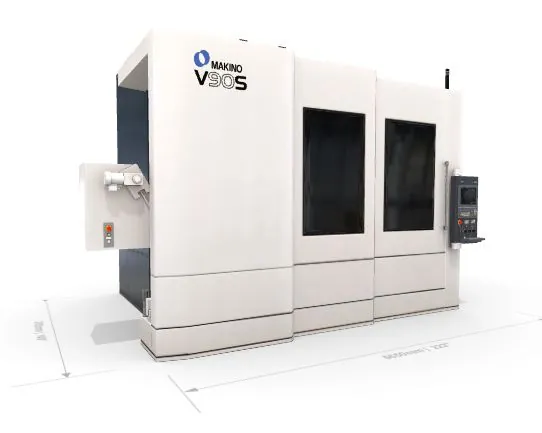

V90S

X/Y/Z travel: 78.7" / 51.2" / 31.5"
Table size: 78.73" x 51.18"
Spindle (rpm): 20,000 (HSK – A63)
Tool capacity: 40 (120 opt)

Get specs & pricing View full specs ↗

Request a quote on a Makino 5-Axis Machining Centers machine
Ellis Machinery & Equipment, Inc. · 6225 20th Street E, Fife, WA 98424 · 253-926-6868 · Monday–Friday, 8:00 AM–4:30 PM

Request a quote

Wire EDM

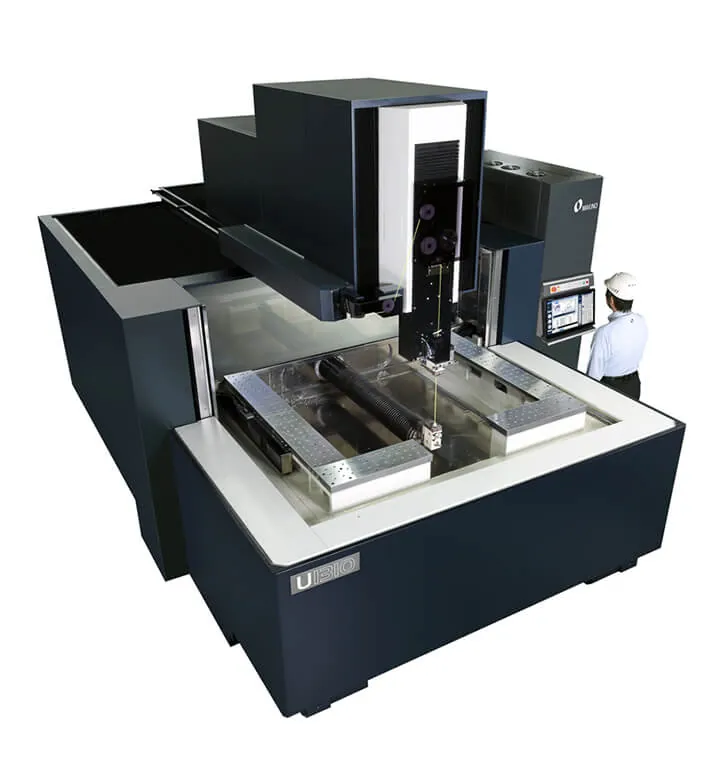

U1310

X/Y/Z travel: 51.57" / 39.76" / 20.47" (optional 24.41")
Table size: Opposed L-Shape (67.7" x 58.1")

Get specs & pricing View full specs ↗

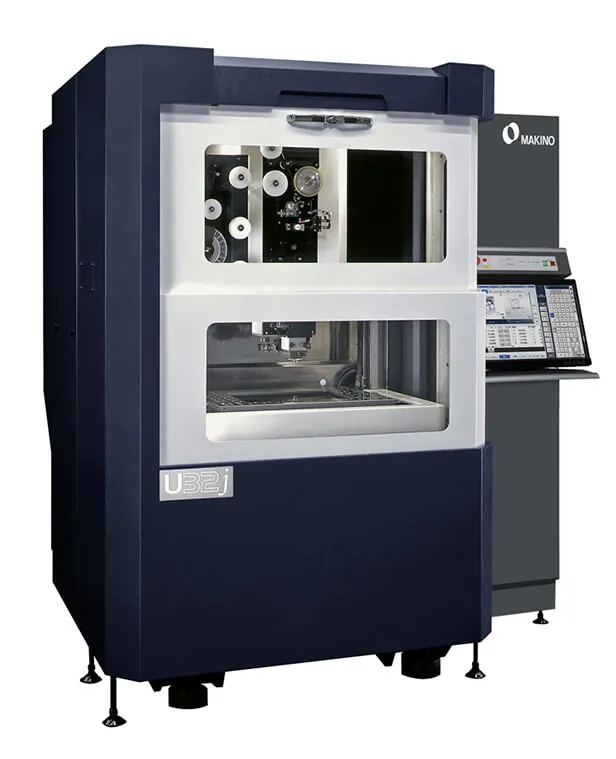

U32j

X/Y/Z travel: 14.6 " / 10.6 " / 8.7 "
Table size: 30.7 x 23.2 "

Get specs & pricing View full specs ↗

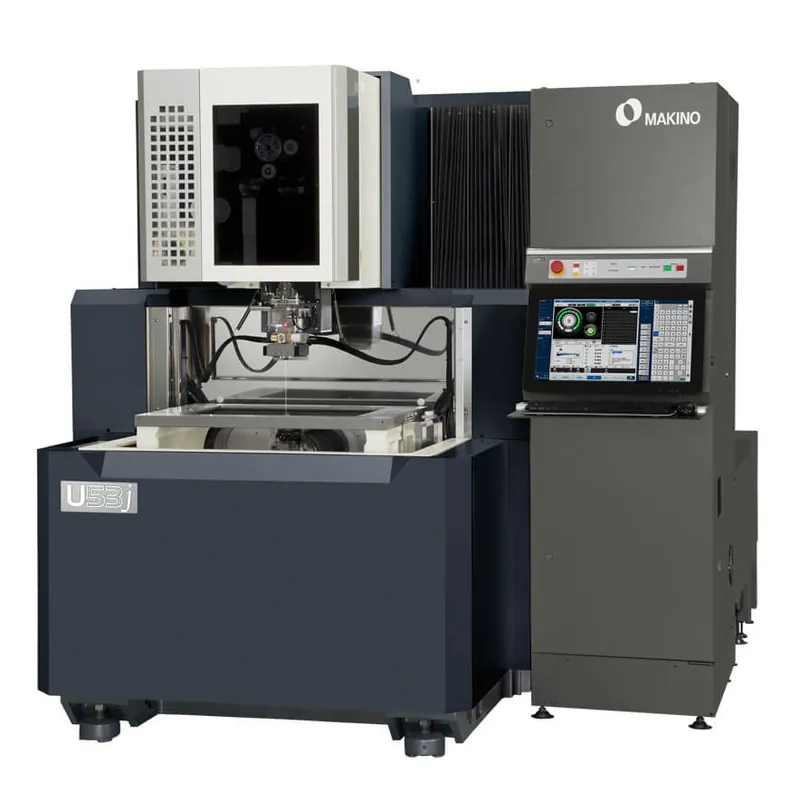

U53j

X/Y/Z travel: 21.6 " / 14.6 " / 8.7 "
Table size: 31.9 x 22.0 "

Get specs & pricing View full specs ↗

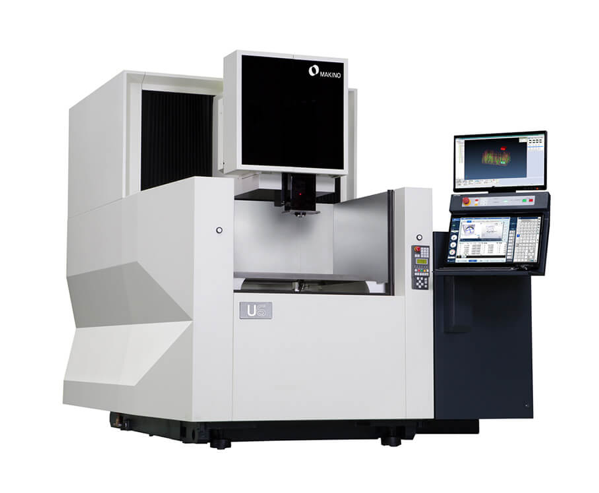

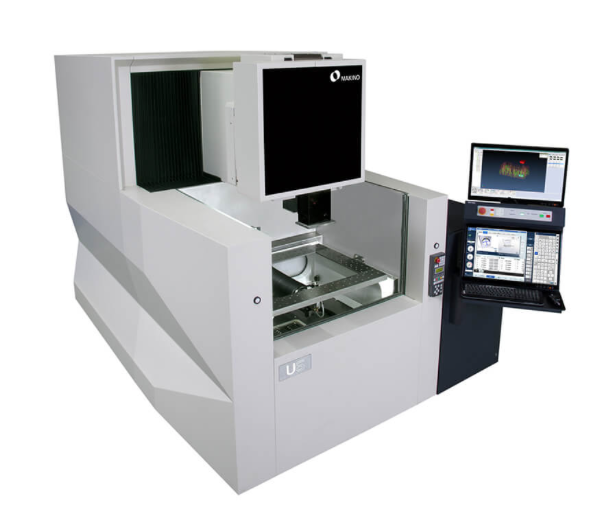

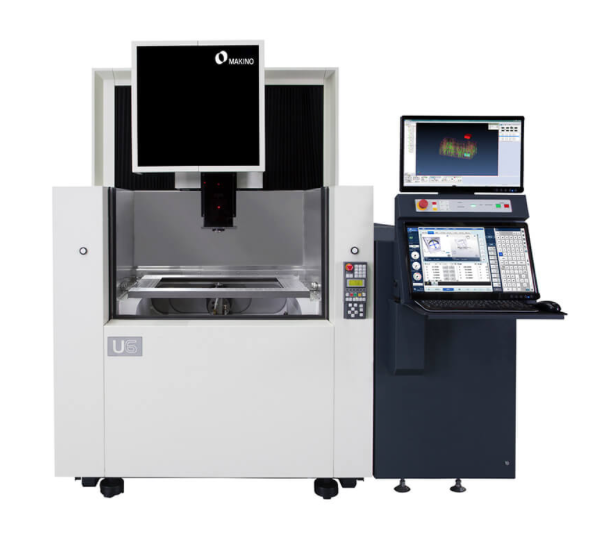

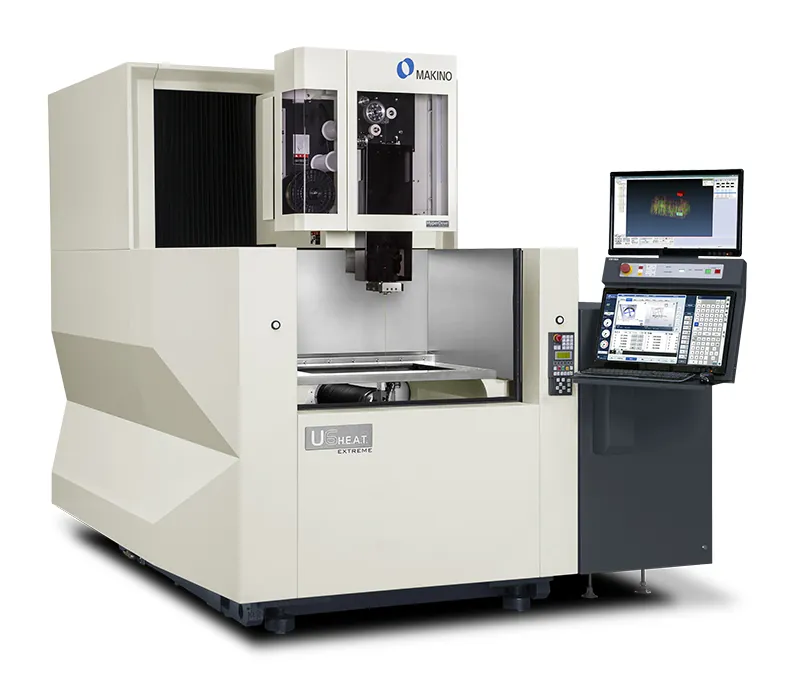

U6 H.E.A.T. Extreme

X/Y/Z travel: 25.6" / 17.7" / 16.5"
Table size: 4-Sided 35.8" x 28.0"

Get specs & pricing View full specs ↗

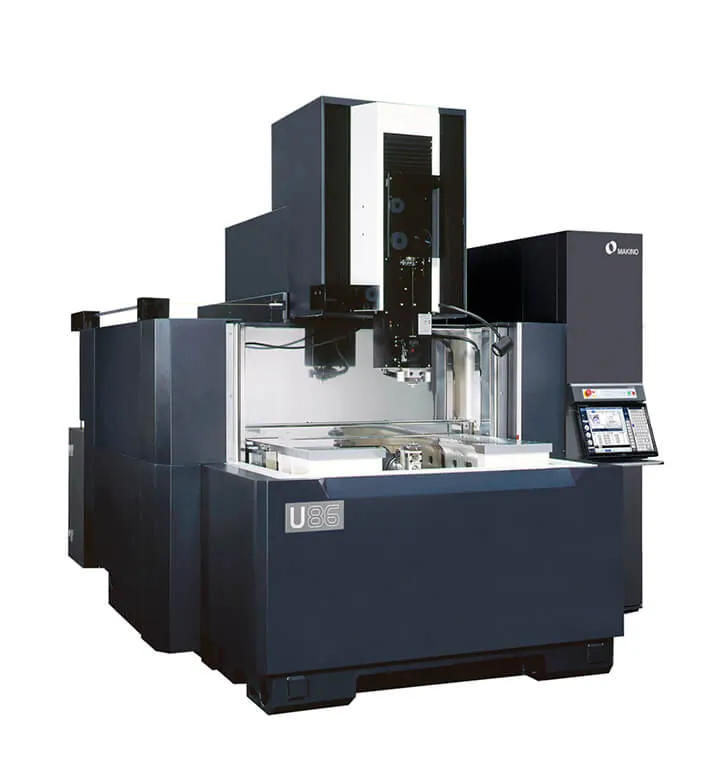

U86

X/Y/Z travel: 31.5" / 23.6" / 12.6" (19.7" optional)
Table size: 48" x 35.8"

Get specs & pricing View full specs ↗

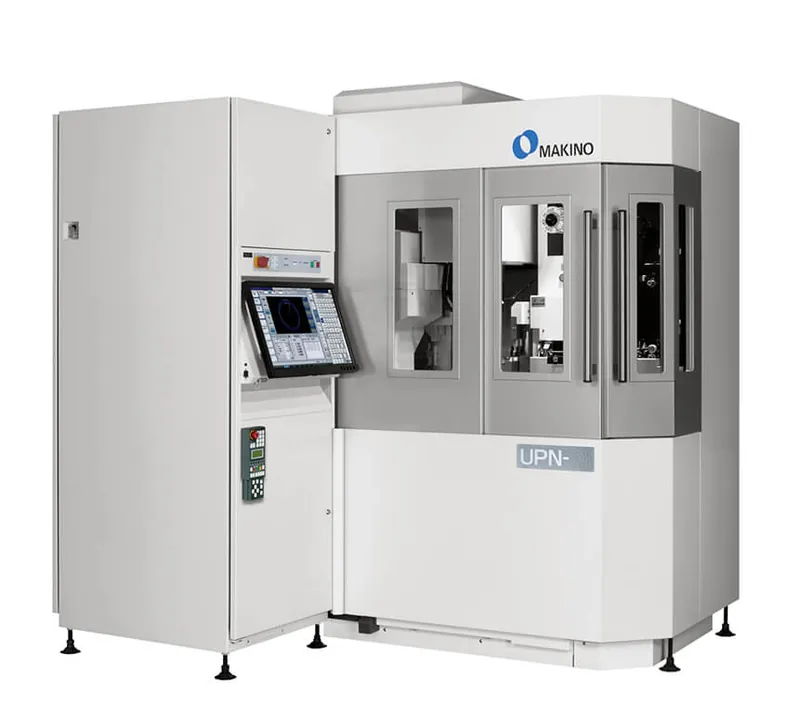

UPN-01

X/Y/Z travel: 6.3" / 6.3" / 1.9"
Max. Workpiece Weight: 17.6 lbs

Get specs & pricing View full specs ↗

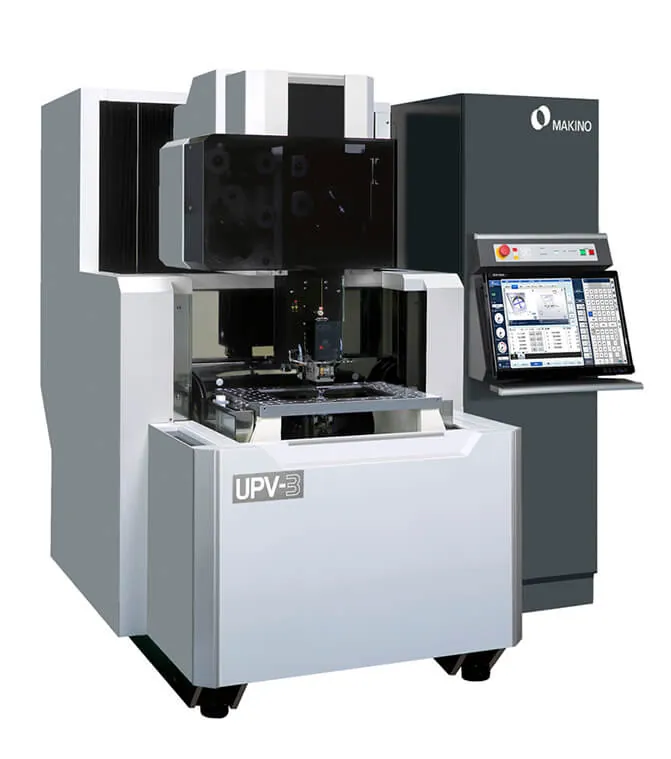

UPV-3

X/Y/Z travel: 14.56" / 10.63" / 8.7"
Table size: 24.8" x 17.71"

Get specs & pricing View full specs ↗

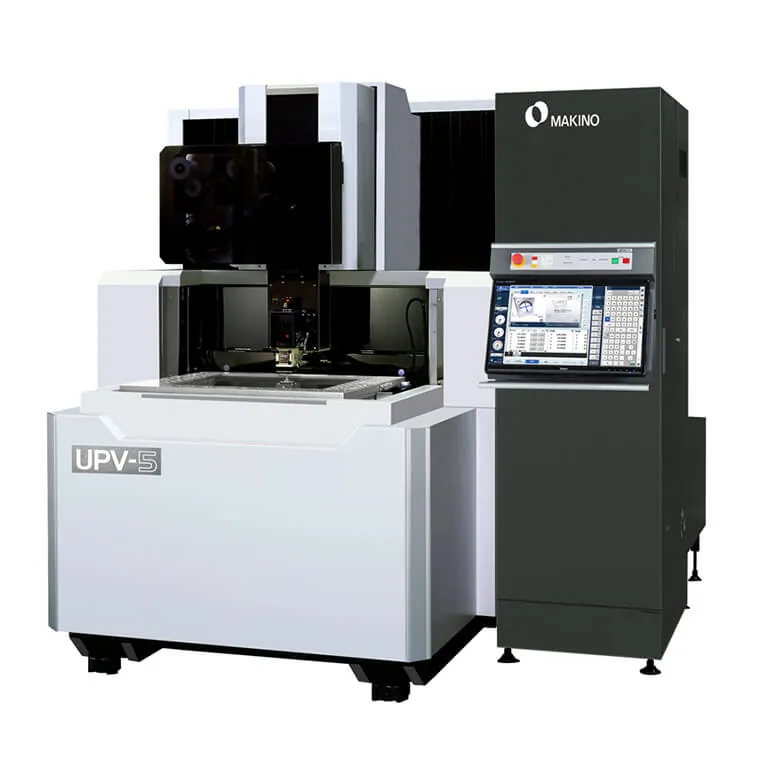

UPV-5

X/Y/Z travel: 21.65" / 14.56" / 8.7"
Table size: 31.89" x 21.65"

Get specs & pricing View full specs ↗

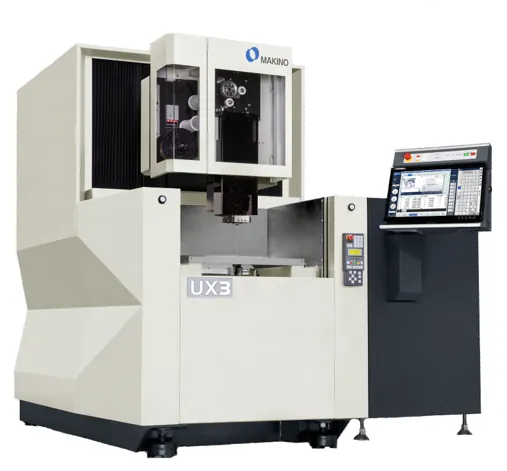

UX3

X/Y/Z travel: 14.6" / 10.6" / 8.7"
Table size: 3-Sided 24.8" x 17.7"

Get specs & pricing View full specs ↗

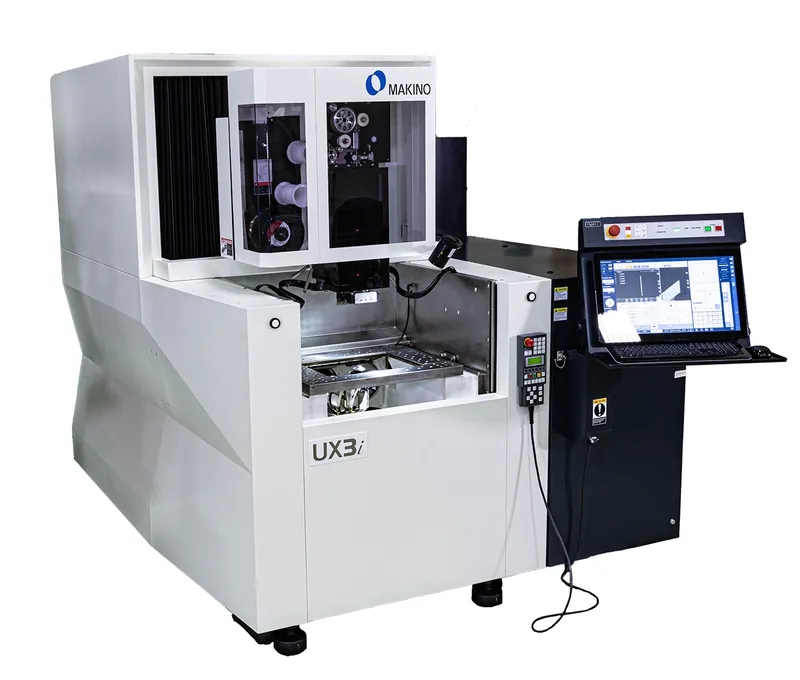

UX3i

X/Y/Z travel: 14.6" / 10.6" / 8.7"
Table size: 3-Sided 24.8" x 18.11"

Get specs & pricing View full specs ↗

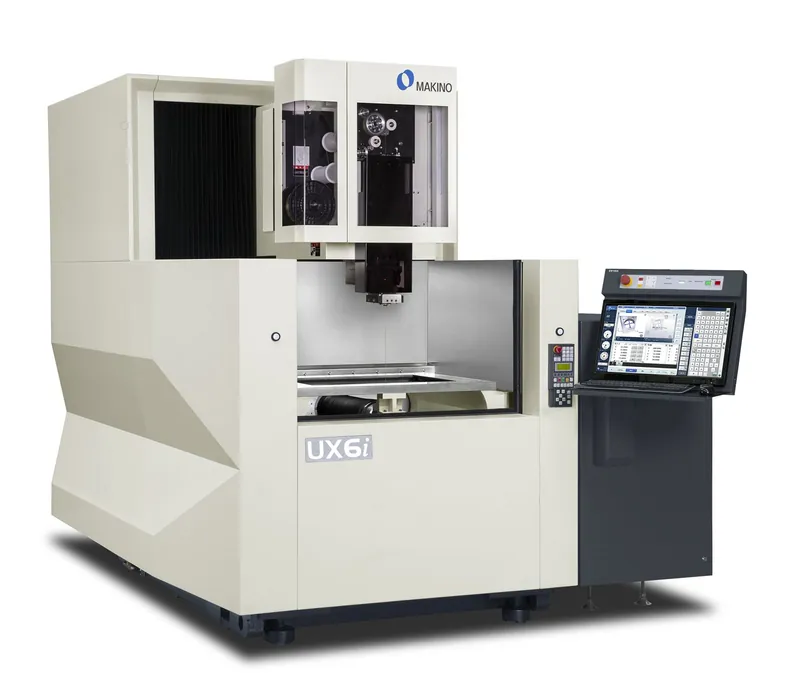

UX6i

X/Y/Z travel: 25.6" / 17.7" / 16.5"
Table size: 4-Sided 35.8" x 28.0"

Get specs & pricing View full specs ↗

Request a quote on a Makino Wire EDM machine
Ellis Machinery & Equipment, Inc. · 6225 20th Street E, Fife, WA 98424 · 253-926-6868 · Monday–Friday, 8:00 AM–4:30 PM

Request a quote

Sinker EDM

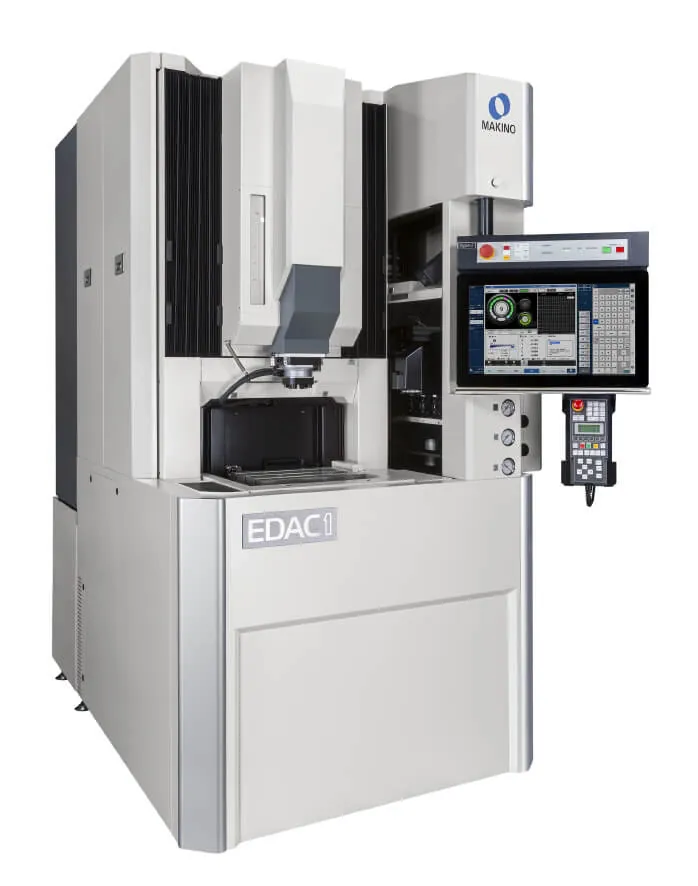

EDAC1

X/Y/Z travel: 8.66" / 7.08" / 8.66"
Table size: 13.8" x 9.8"

Get specs & pricing View full specs ↗

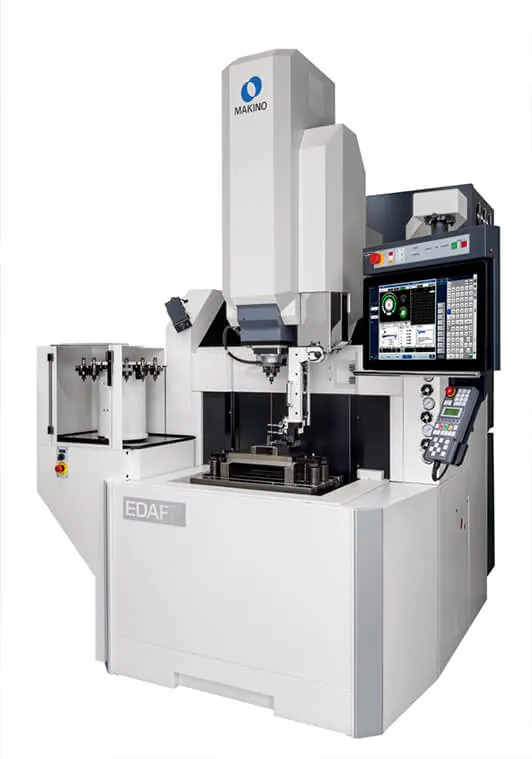

EDAF2

X/Y/Z travel: 13.78" / 9.8" / 9.8"
Table size: 21.65" x 13.78"

Get specs & pricing View full specs ↗

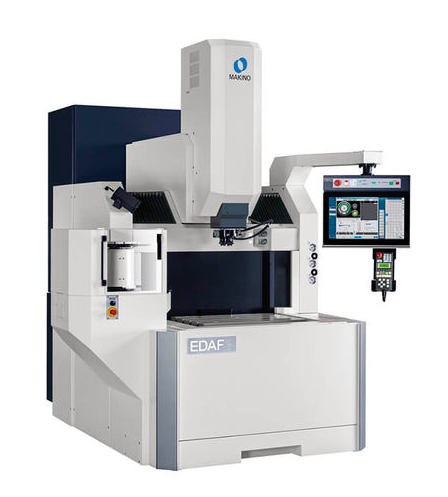

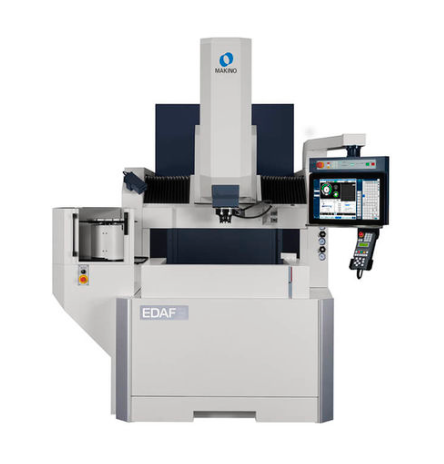

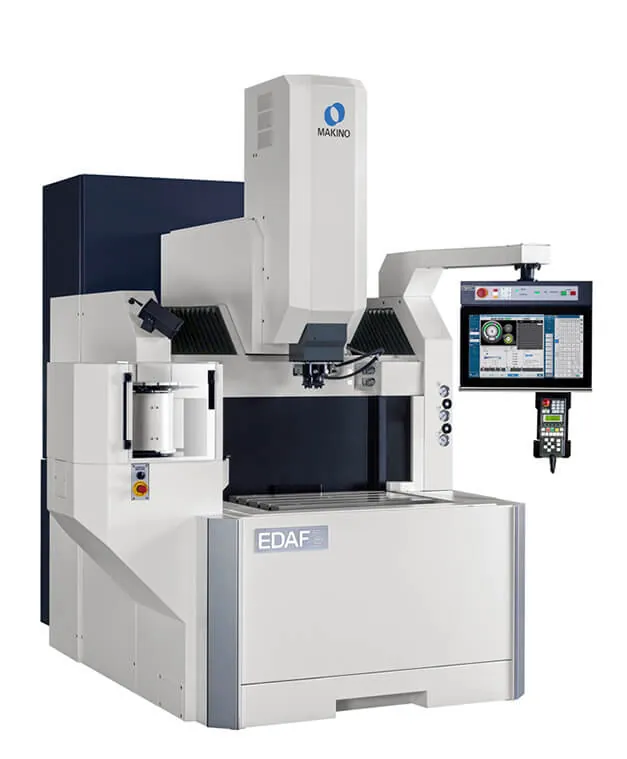

EDAF3

X/Y/Z travel: 17.7" / 13.8" / 13.8"
Table size: 27.5" x 19.7"

Get specs & pricing View full specs ↗

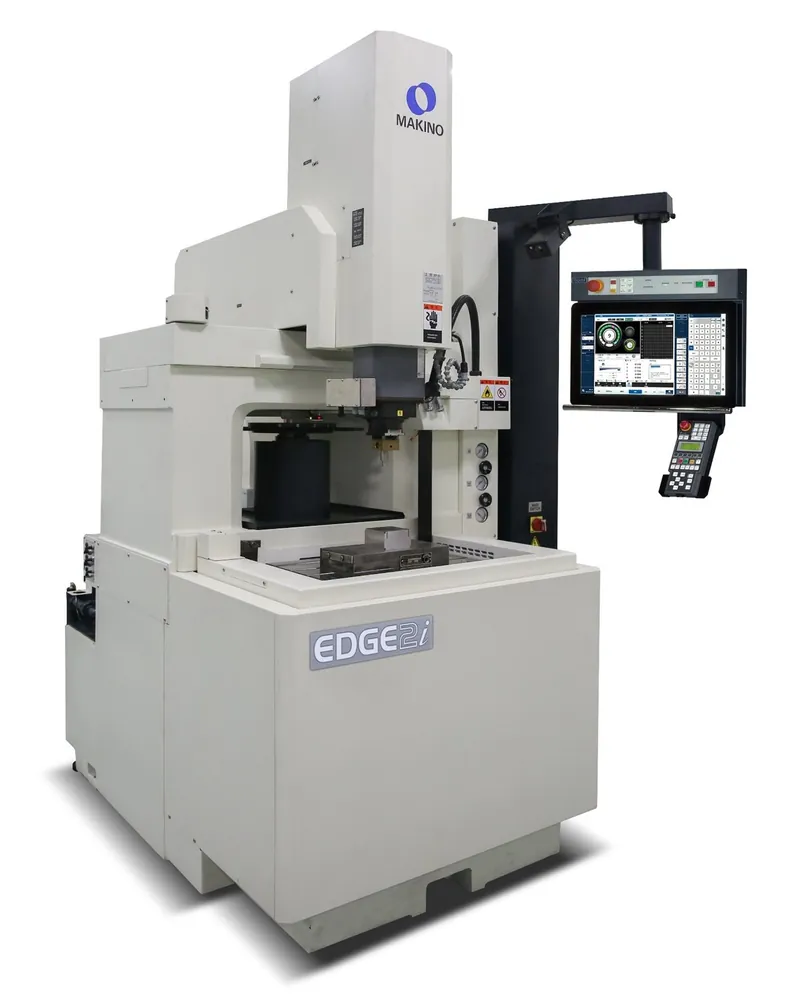

EDGE2i

Tool capacity: 4,8,16
Max. Workpiece Weight: 1,100 lbs

Get specs & pricing View full specs ↗

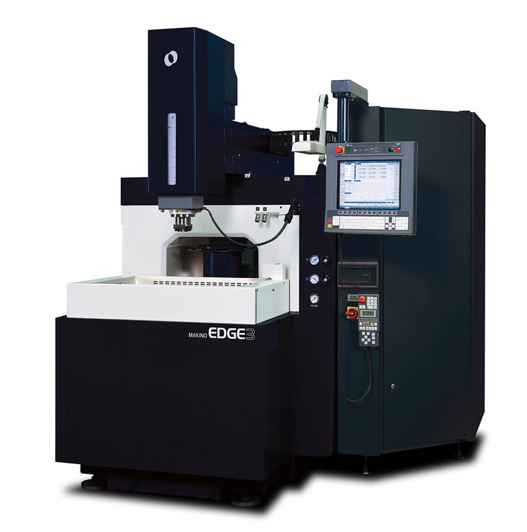

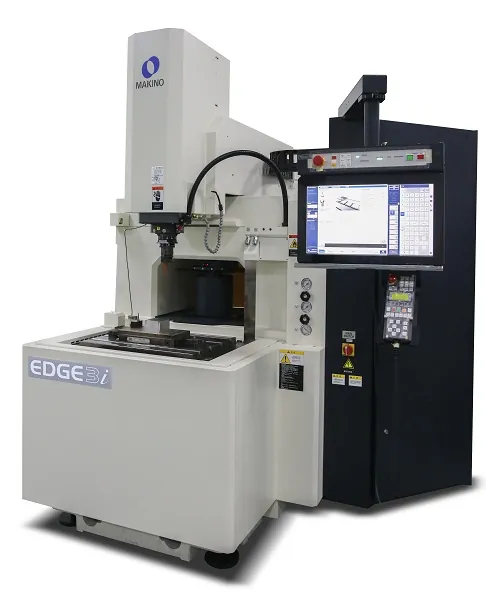

EDGE3i

X/Y/Z travel: 17.7" / 11.8" / 12.6"
Table size: 23.6" x 17.7"
Tool capacity: 5, 8, 16

Get specs & pricing View full specs ↗

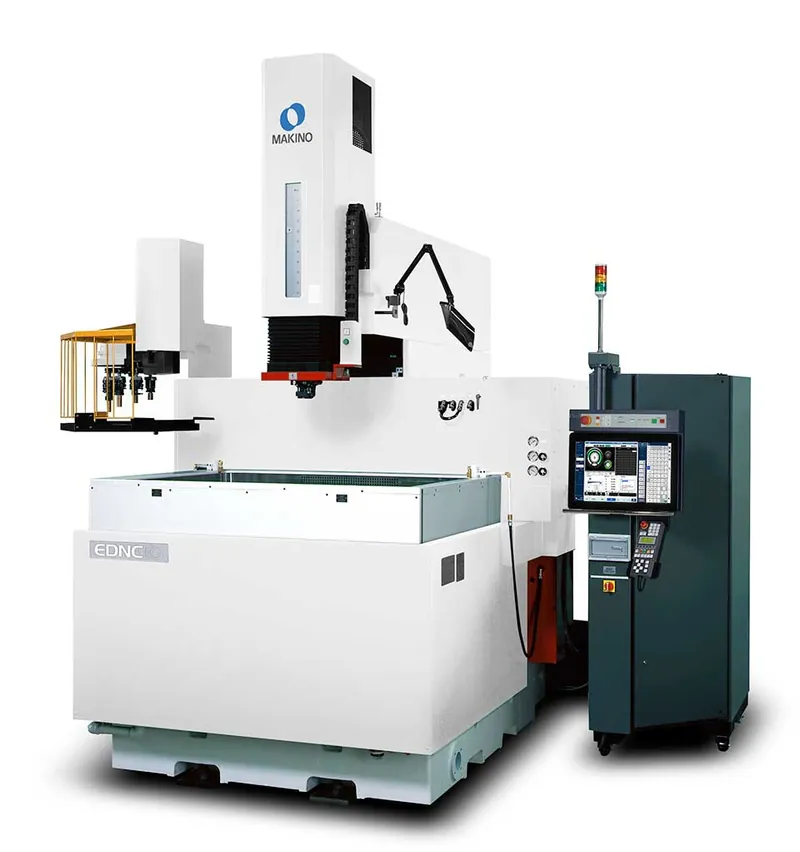

EDNC10

X/Y/Z travel: 39.4" / 23.6" / 19.7"
Table size: 51.2" x 37.4"
Tool capacity: 8, 16

Get specs & pricing View full specs ↗

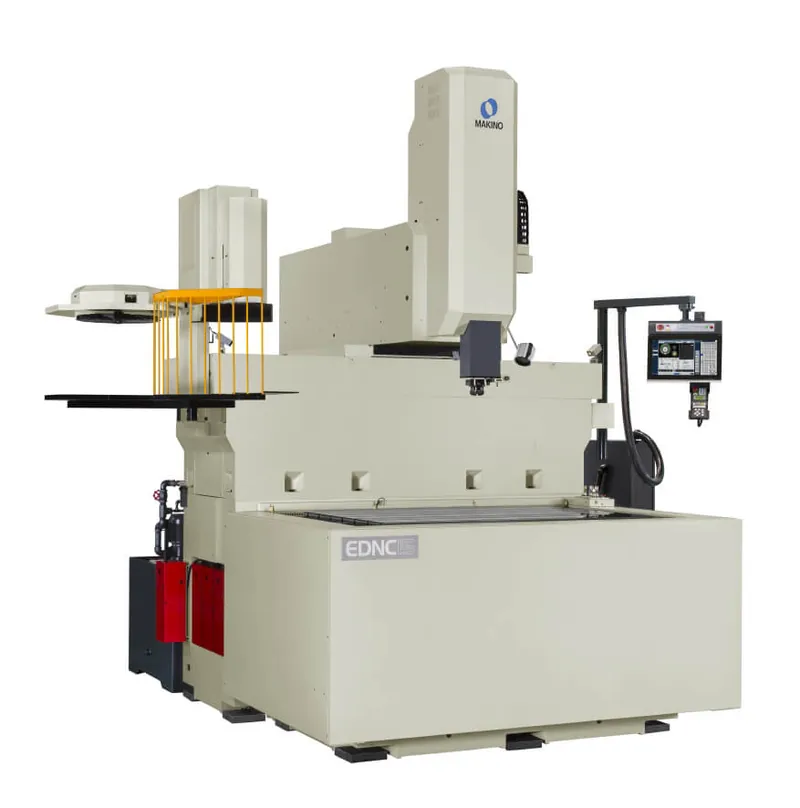

EDNC15

X/Y/Z travel: 59.0" / 27.6" / 19.7" (31.5")
Table size: 78.7" x 39.4"
Tool capacity: 8, 16, 32

Get specs & pricing View full specs ↗

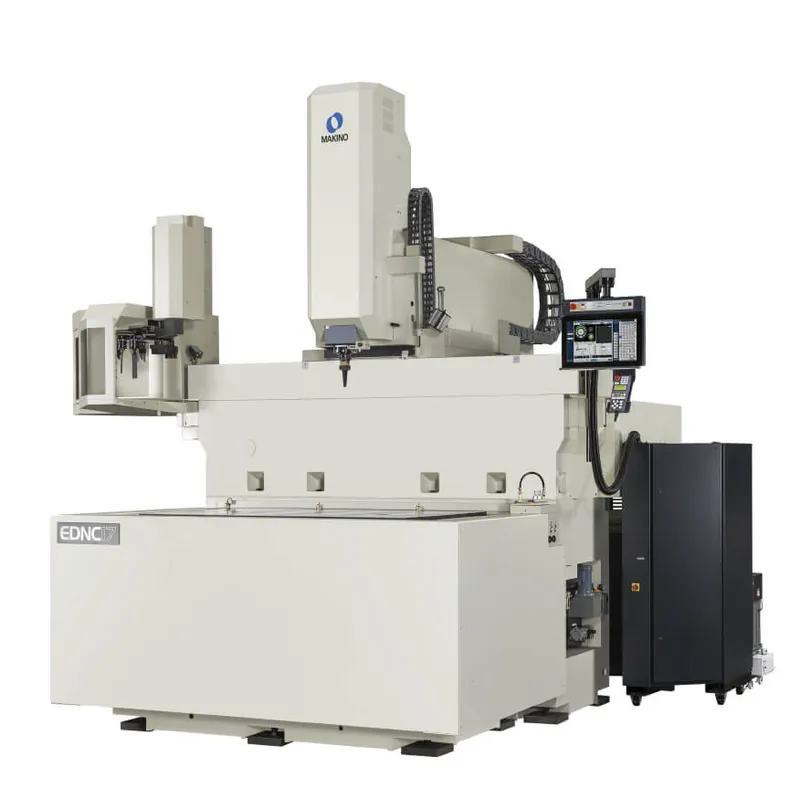

EDNC17

X/Y/Z travel: 66.9" / 45.3" / 31.5"
Table size: 78.7" x 53.2"
Tool capacity: 8, 16, 32

Get specs & pricing View full specs ↗

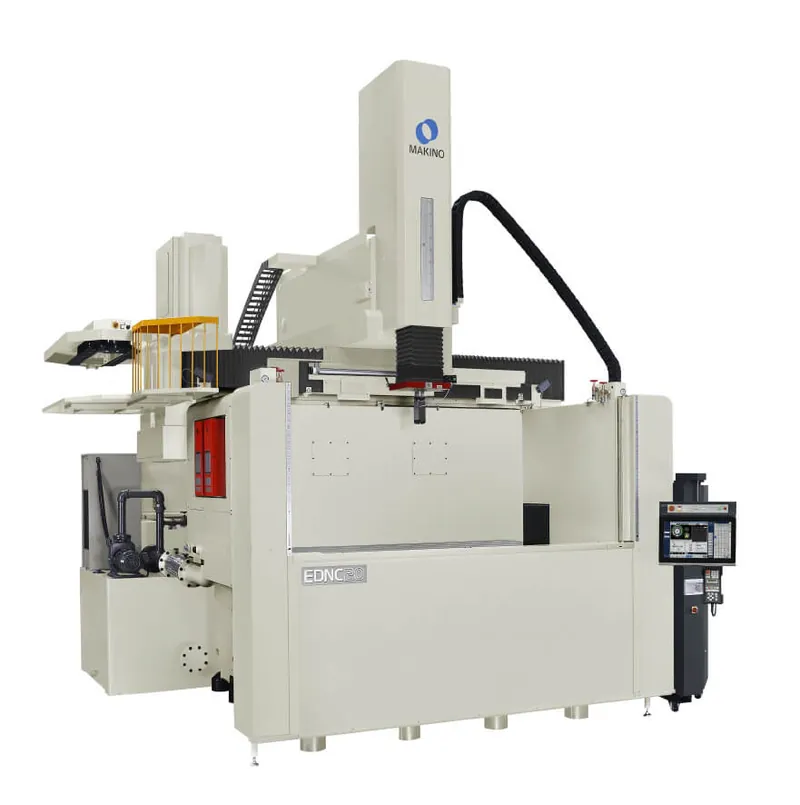

EDNC20

X/Y/Z travel: 78.7" (86.6") / 27.6" (39.4") / 23.6" (31.5")
Table size: 98.4" x 47.2"
Tool capacity: 8, 16, 32

Get specs & pricing View full specs ↗

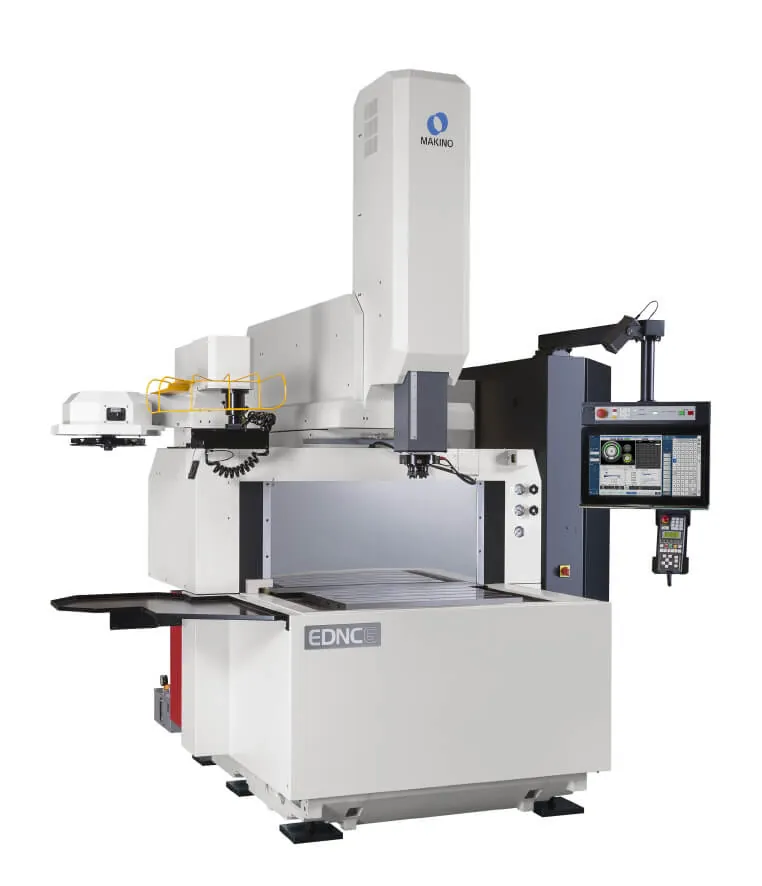

EDNC6

X/Y/Z travel: 25.6" / 17.7" / 13.8" (19.7")
Table size: 31.5" x 21.7"
Tool capacity: 16, 32

Get specs & pricing View full specs ↗

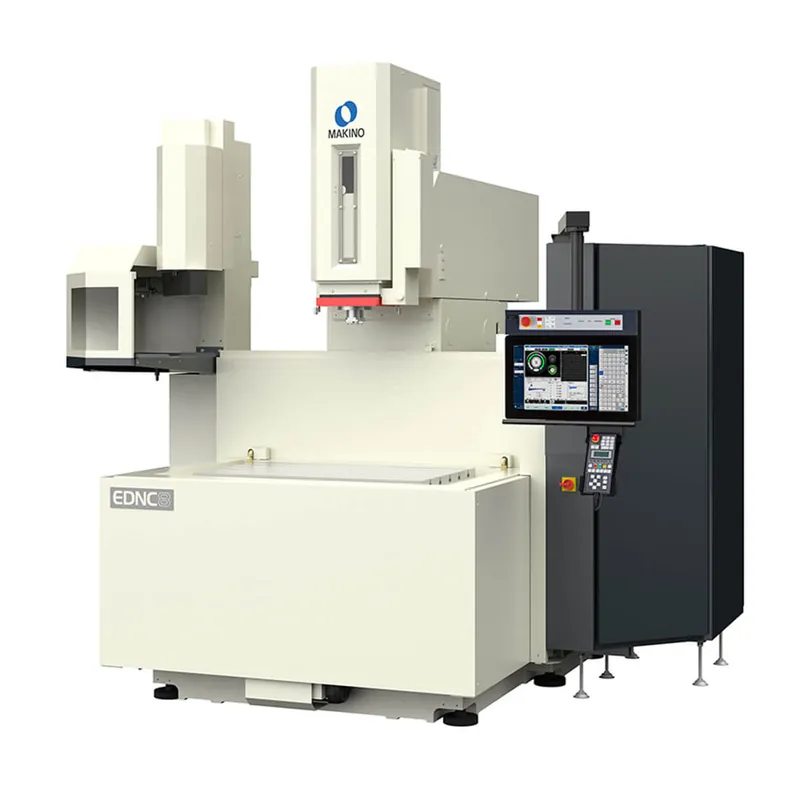

EDNC8

X/Y/Z travel: 31.5" / 19.7" / 15.8" (19.7")
Table size: 43.3" x 27.6"
Tool capacity: 16, 32

Get specs & pricing View full specs ↗

Request a quote on a Makino Sinker EDM machine
Ellis Machinery & Equipment, Inc. · 6225 20th Street E, Fife, WA 98424 · 253-926-6868 · Monday–Friday, 8:00 AM–4:30 PM

Request a quote

EDM Hole Drilling

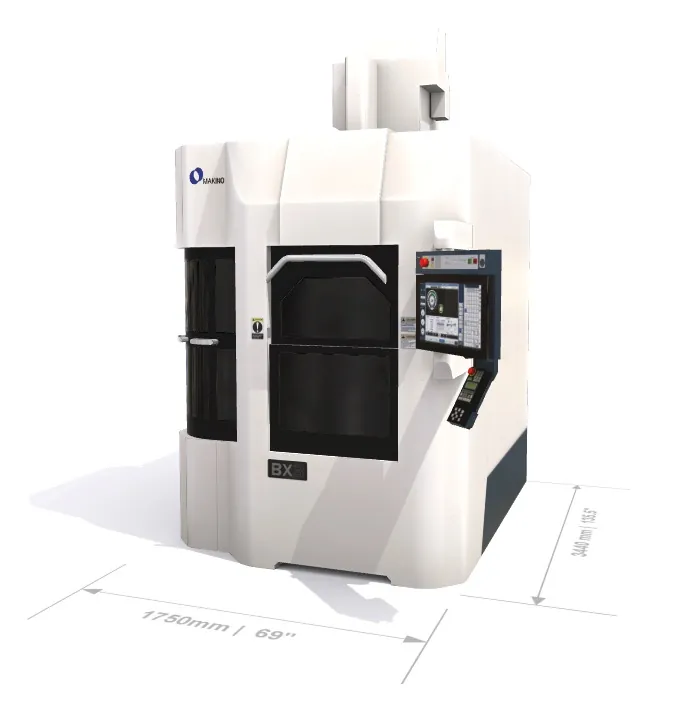

BX3

Max. Workpiece Weight: 44 lbs
Tank Size: 31.50" x 29.13"

Get specs & pricing View full specs ↗

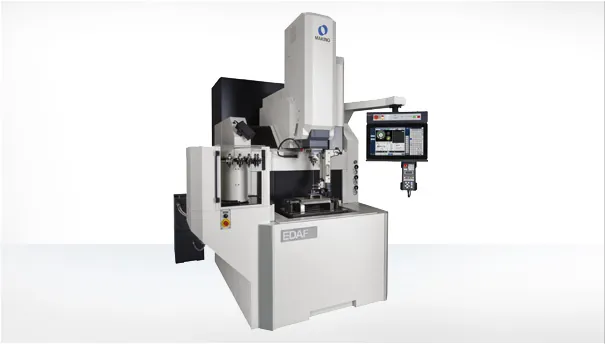

EDAF2-FH

X/Y/Z travel: 13.8" / 9.8" / 13.8"
Table size: 21.7" x 13.8"

Get specs & pricing View full specs ↗

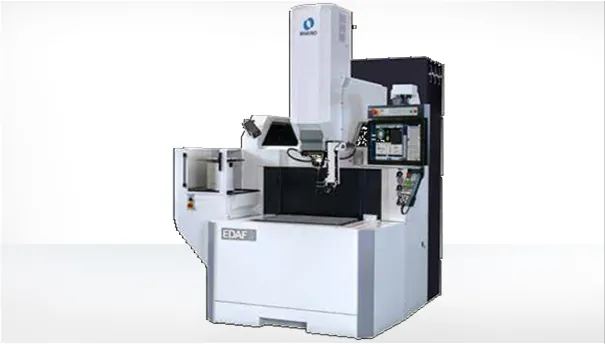

EDAF3-FH

X/Y/Z travel: 17.7" / 13.8" / 13.8"
Table size: 27.5" x 19.7"
Tool capacity: 8, 16, 32

Get specs & pricing View full specs ↗

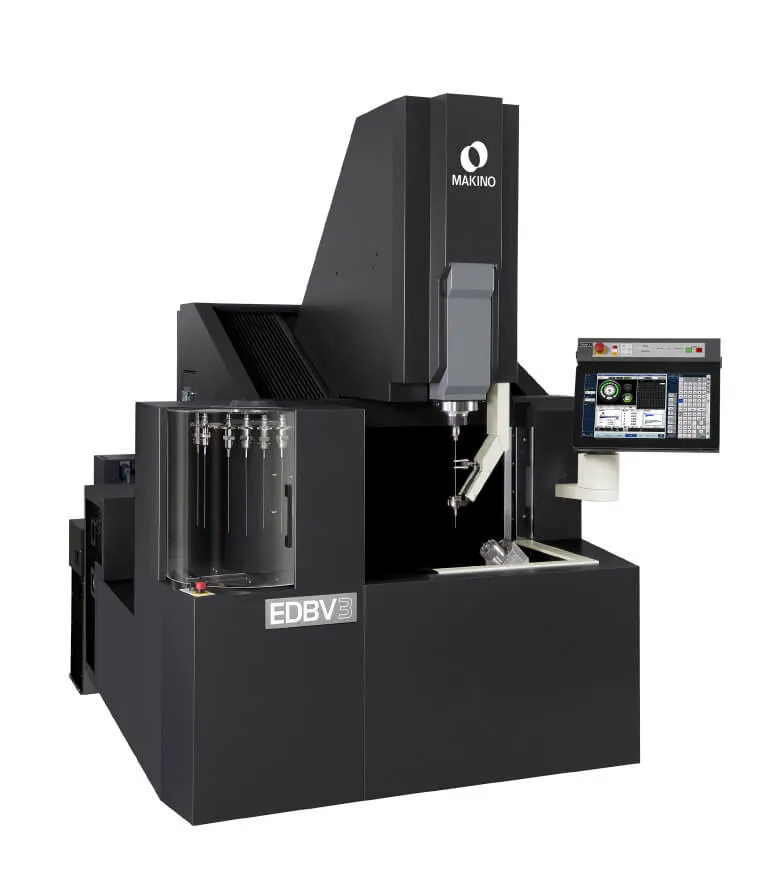

EDBV3

X/Y/Z travel: 14.6" / 10.6" / 19.7"
Tool capacity: 24

Get specs & pricing View full specs ↗

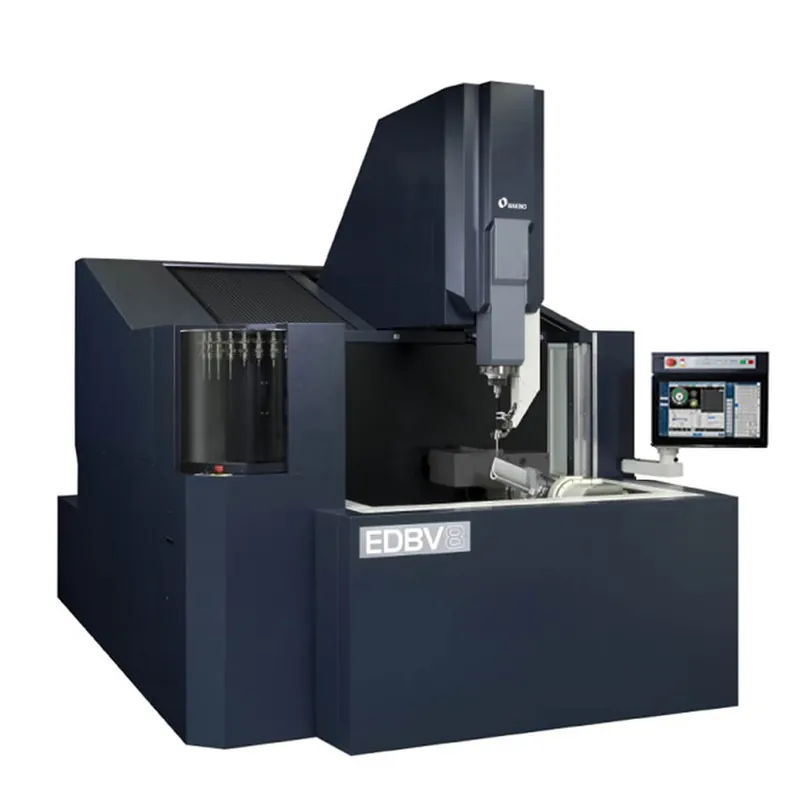

EDBV8

X/Y/Z travel: 31.5" / 23.6" / 19.7" (29.5")
Tool capacity: 24

Get specs & pricing View full specs ↗

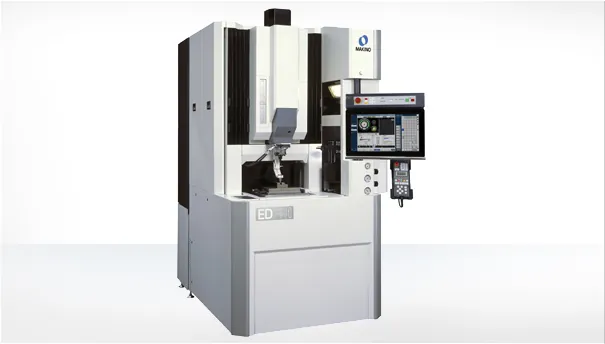

EDFH-1

X/Y/Z travel: 8.7" / 7.1" / 11.8"
Table size: 13.8" x 9.8"
Tool capacity: 8, 16

Get specs & pricing View full specs ↗

Request a quote on a Makino EDM Hole Drilling machine
Ellis Machinery & Equipment, Inc. · 6225 20th Street E, Fife, WA 98424 · 253-926-6868 · Monday–Friday, 8:00 AM–4:30 PM

Request a quote

Grinding Centers

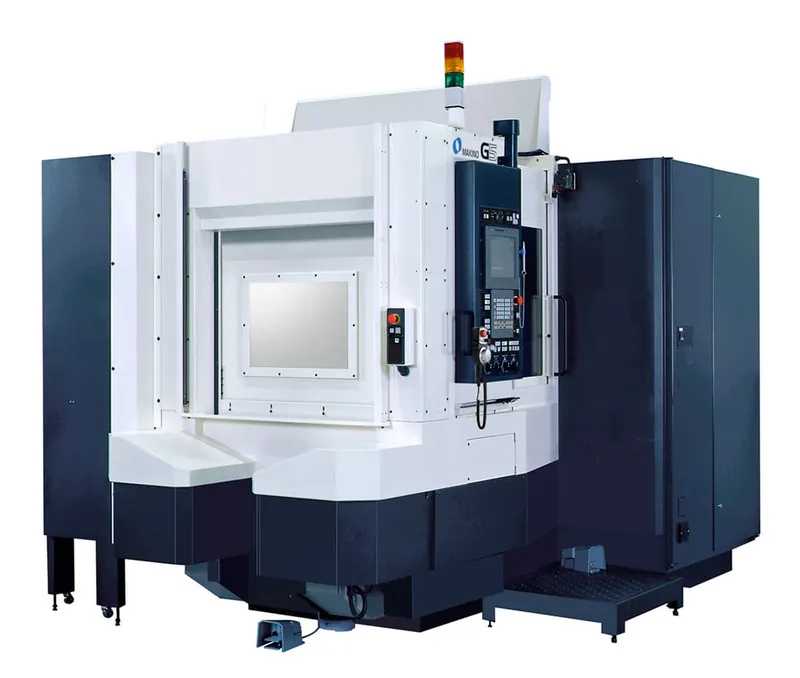

G5

X/Y/Z travel: 20.5" / 22.0" / 23.6"
Pallet: 9.8"
Spindle (rpm): 12,000
Tool capacity: 60 tools

Get specs & pricing View full specs ↗

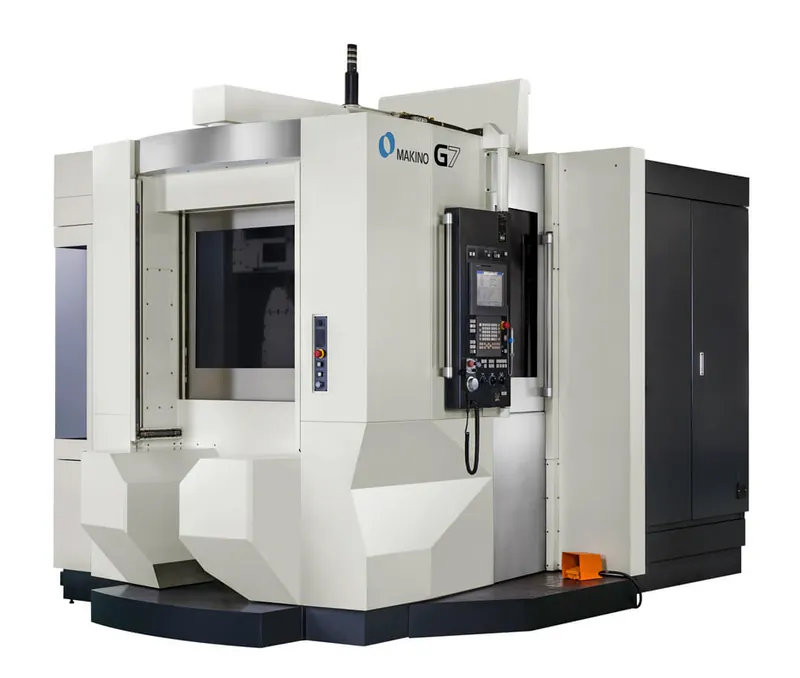

G7

X/Y/Z travel: 27.2" / 25.6" / 28.7"
Pallet: 9.8"
Spindle (rpm): 12,000
Tool capacity: 60 tools

Get specs & pricing View full specs ↗

Request a quote on a Makino Grinding Centers machine
Ellis Machinery & Equipment, Inc. · 6225 20th Street E, Fife, WA 98424 · 253-926-6868 · Monday–Friday, 8:00 AM–4:30 PM

Request a quote

Local Sales and Service for Makino

Ellis Machinery & Equipment sells, installs, repairs, and maintains Makino machines across Washington, Oregon, and British Columbia, Canada, and we repair Makino machines even if you bought yours elsewhere. Parts are dealer-priced, with no third-party markup.

Request a Makino Quote Schedule Makino Service
